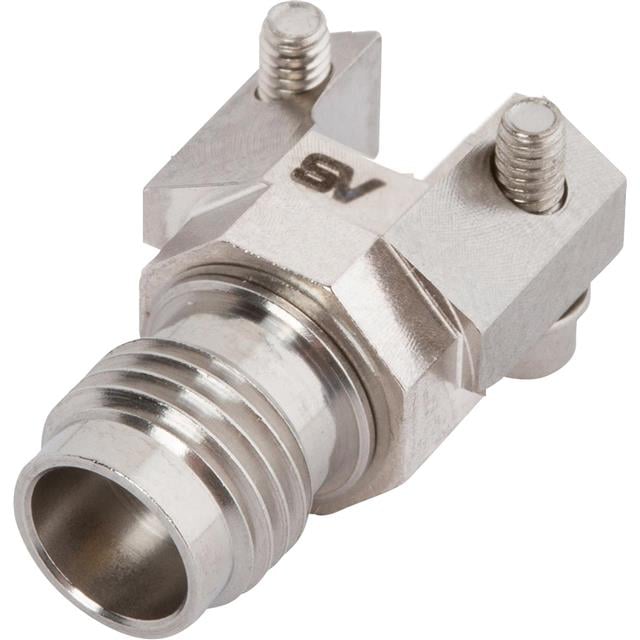

Amphenol SV Microwave SF1621-60059
Images are for reference only
Manufacturer
Manufacturer No
SF1621-60059
Packaging
Tray
Description
2.4MM FEMALE SOLDERLESS PCB EDGE
Detailed Description
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
Datasheet
Payment
Delivery
Mfr
Amphenol SV Microwave
Series
2.4mm
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 2 Screws
Impedance
50 Ohms
Packaging
Tray
Body Finish
-
Cable Group
-
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Board Edge, End Launch
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
0.283dB
Connector Style
2.4mm (APC-2.4, OS-50)
Frequency - Max
50 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Screw
Base Product Number
SF1621
Contact Termination
Compression
Dielectric Material
-
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Series | 2.4mm |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 2 Screws |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | - |
| Cable Group | - |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.283dB |
| Connector Style | 2.4mm (APC-2.4, OS-50) |
| Frequency - Max | 50 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Screw |
| Base Product Number | SF1621 |
| Contact Termination | Compression |
| Dielectric Material | - |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
