Step1: Product

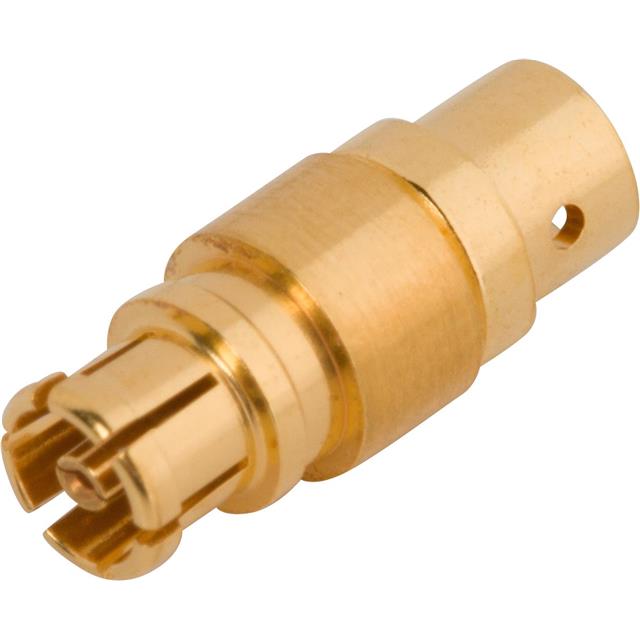

Amphenol SV Microwave 3221-40131
Images are for reference only
Manufacturer
Manufacturer No
3221-40131
Packaging
Tray
Description
SMPM FEMALE NON-MAGNETIC CONNECT
Detailed Description
SMPM Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Datasheet
Payment
Delivery
Mfr
Amphenol SV Microwave
Series
SMPM
Features
Non-Magnetic
Includes
-
Impedance
50 Ohms
Packaging
Tray
Body Finish
Gold
Cable Group
0.047" Flexible
Body Material
Beryllium Copper
Housing Color
Gold
Mating Cycles
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Female Socket
Fastening Type
Snap-On
Insertion Loss
-
Connector Style
SMPM
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
3221-40
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Series | SMPM |
| Features | Non-Magnetic |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | Gold |
| Cable Group | 0.047" Flexible |
| Body Material | Beryllium Copper |
| Housing Color | Gold |
| Mating Cycles | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Female Socket |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Connector Style | SMPM |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | 3221-40 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
