Step1: Product

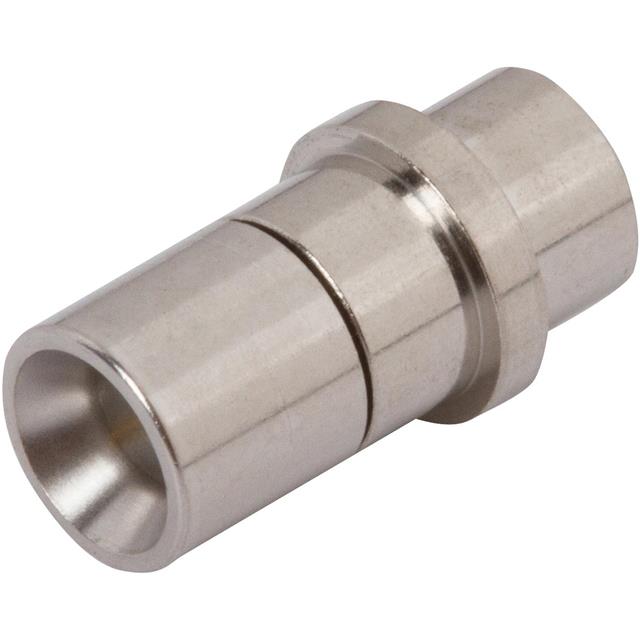

Amphenol SV Microwave 1132-6116
Images are for reference only
Manufacturer
Manufacturer No
1132-6116
Availability
In Stock
Packaging
Bag
Description
COAX ADAPT SMPM TO SMPM
Detailed Description
Adapter Coaxial Connector SMPM Plug, Male Pin To SMPM Plug, Male Pin 50 Ohms
Datasheet
Payment
Delivery
Mfr
Amphenol SV Microwave
Style
Straight
Series
VITA 67.3
Features
Full Detent, Smooth Bore
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
-
Adapter Type
Plug to Plug
Body Material
Stainless Steel
Center Gender
Male to Male
Mating Cycles
100, 500
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMPM to SMPM
Fastening Type
Snap-On, Snap-On
Insertion Loss
-
Conversion Type
Same Series
Frequency - Max
40 GHz
Mounting Feature
-
Ingress Protection
-
Base Product Number
1132-61
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMPM Plug, Male Pin
Convert From (Adapter End)
SMPM Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Amphenol SV Microwave |
| Style | Straight |
| Series | VITA 67.3 |
| Features | Full Detent, Smooth Bore |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | - |
| Adapter Type | Plug to Plug |
| Body Material | Stainless Steel |
| Center Gender | Male to Male |
| Mating Cycles | 100, 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMPM to SMPM |
| Fastening Type | Snap-On, Snap-On |
| Insertion Loss | - |
| Conversion Type | Same Series |
| Frequency - Max | 40 GHz |
| Mounting Feature | - |
| Ingress Protection | - |
| Base Product Number | 1132-61 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMPM Plug, Male Pin |
| Convert From (Adapter End) | SMPM Plug, Male Pin |
