Step1: Product

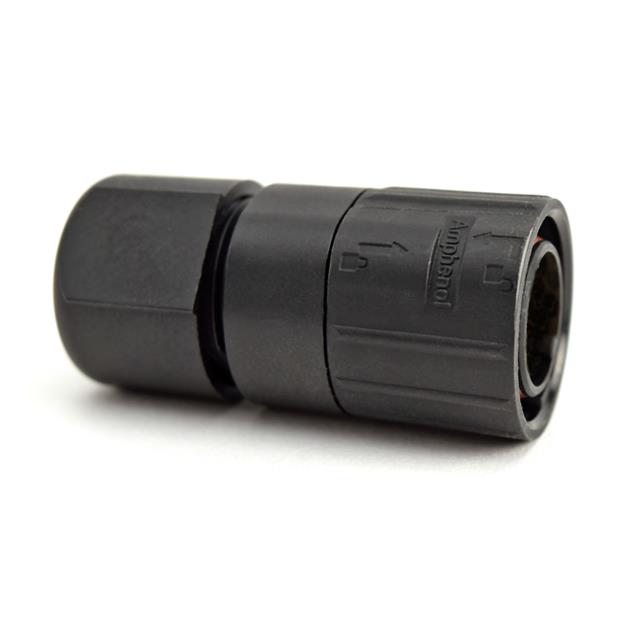

Amphenol Sine Systems Corp C09131H0032005U
Images are for reference only
Manufacturer
Manufacturer No
C09131H0032005U
Packaging
Box
Description
MALE CABLE CONNECTOR, QUICKLOCK,
Detailed Description
3 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Sine Systems Corp
Color
Black
Series
signalmate® C091 M16 Q (Quicklock)
Features
Backshell, Coupling Nut
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
-
Shell Finish
-
Cable Opening
0.157" ~ 0.335" (4.00mm ~ 8.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Thermoplastic
Voltage Rating
150V
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
-
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
C09131H
Number of Positions
3
Shell Size - Insert
M16-3
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 100°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Thermoplastic
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Color | Black |
| Series | signalmate® C091 M16 Q (Quicklock) |
| Features | Backshell, Coupling Nut |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | - |
| Shell Finish | - |
| Cable Opening | 0.157" ~ 0.335" (4.00mm ~ 8.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Thermoplastic |
| Voltage Rating | 150V |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | - |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | C09131H |
| Number of Positions | 3 |
| Shell Size - Insert | M16-3 |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 100°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
