Step1: Product

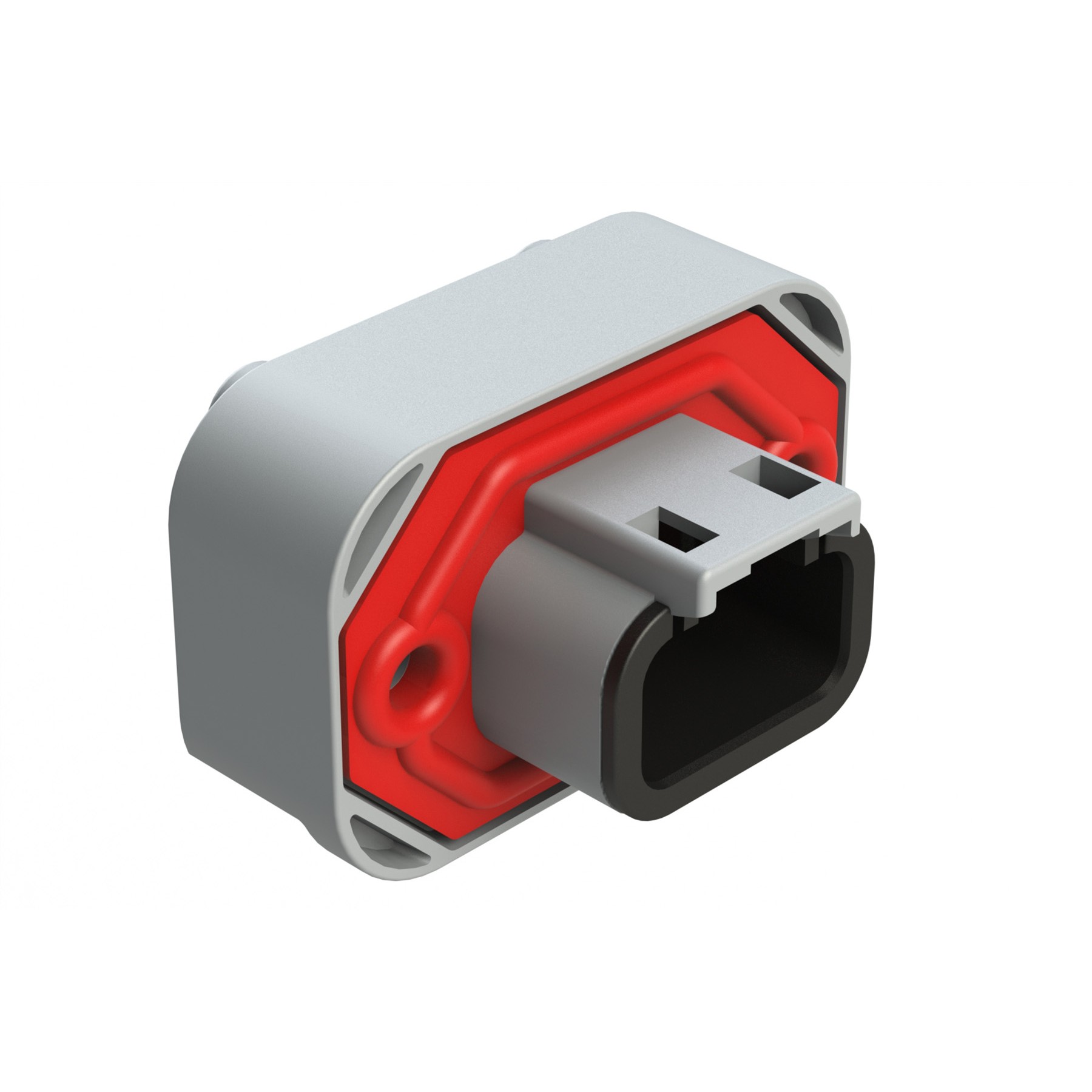

Amphenol Sine Systems Corp ATM15-3P-BM01
Images are for reference only
Manufacturer
Manufacturer No
ATM15-3P-BM01
Packaging
Tray
Description
CONN HEADER VERT 3POS
Detailed Description
Connector Header Through Hole 3 position
Datasheet
Payment
Delivery
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ATM Series™ BoardLock™
Features
Board Guide, Mating Flange, Mounting Flange
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
-
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Gray
Insulation Height
1.189" (30.20mm)
Ingress Protection
IP67
Base Product Number
ATM15
Insulation Material
Thermoplastic
Number of Positions
3
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ATM Series™ BoardLock™ |
| Features | Board Guide, Mating Flange, Mounting Flange |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | - |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Gray |
| Insulation Height | 1.189" (30.20mm) |
| Ingress Protection | IP67 |
| Base Product Number | ATM15 |
| Insulation Material | Thermoplastic |
| Number of Positions | 3 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
