Amphenol Sine Systems Corp ARC22-50P07-BM01SP1
Images are for reference only
Manufacturer
Manufacturer No
ARC22-50P07-BM01SP1
Packaging
Box
Description

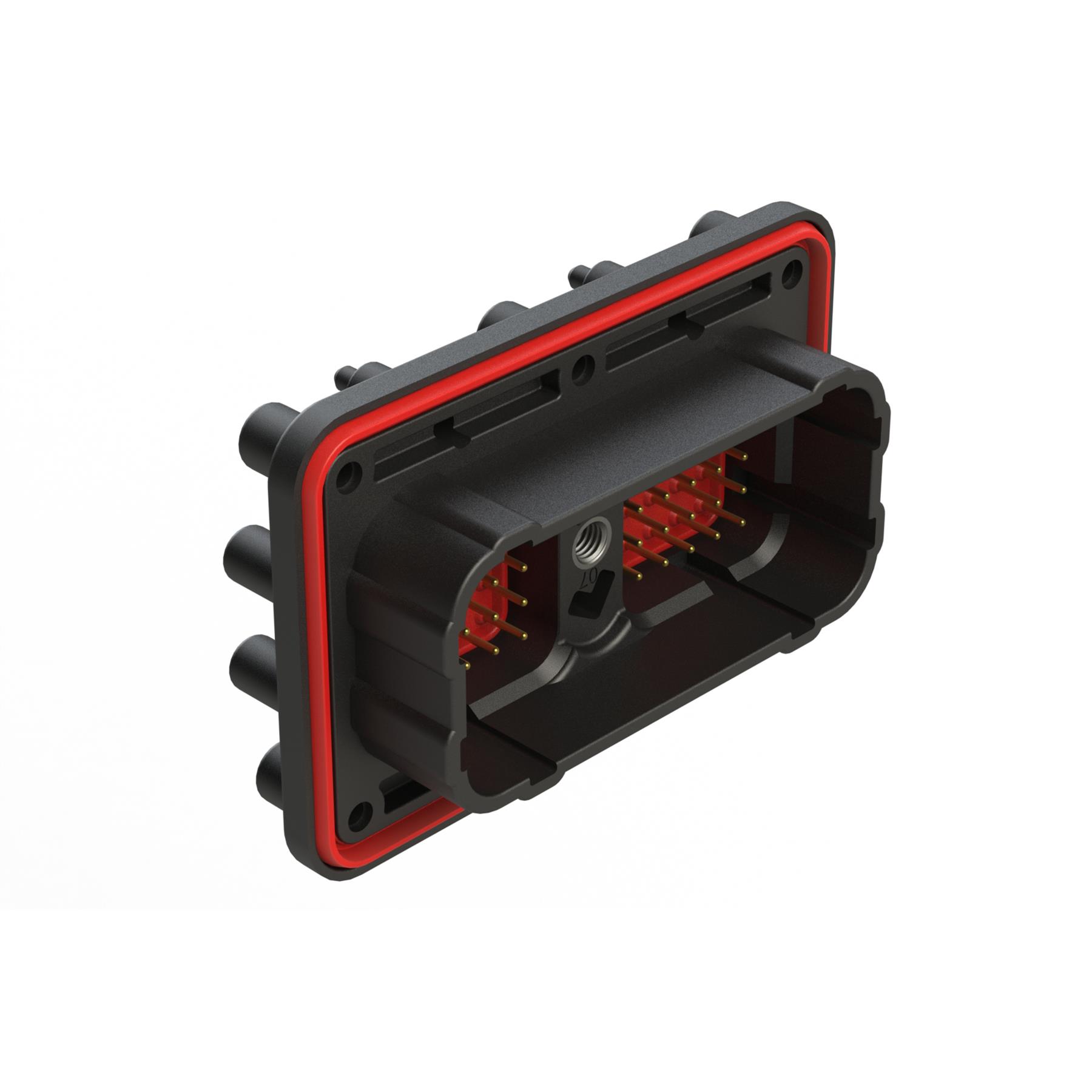

50 POSITION PCB RECEPTACLE, PIN,
Detailed Description
Connector Header Panel Mount, Through Hole 50 position 0.174" (4.42mm)
Datasheet
Payment
Delivery
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ARCSeries™
Features
Board Guide
Packaging
Box
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
5
Pitch - Mating
0.174" (4.42mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.204" (30.58mm)
Ingress Protection
-
Insulation Material
Thermoplastic
Number of Positions
50
Row Spacing - Mating
0.173" (4.40mm)
Contact Finish - Post
Tin
Contact Length - Post
0.128" (3.25mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ARCSeries™ |
| Features | Board Guide |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 5 |
| Pitch - Mating | 0.174" (4.42mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.204" (30.58mm) |
| Ingress Protection | - |
| Insulation Material | Thermoplastic |
| Number of Positions | 50 |
| Row Spacing - Mating | 0.173" (4.40mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.128" (3.25mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
