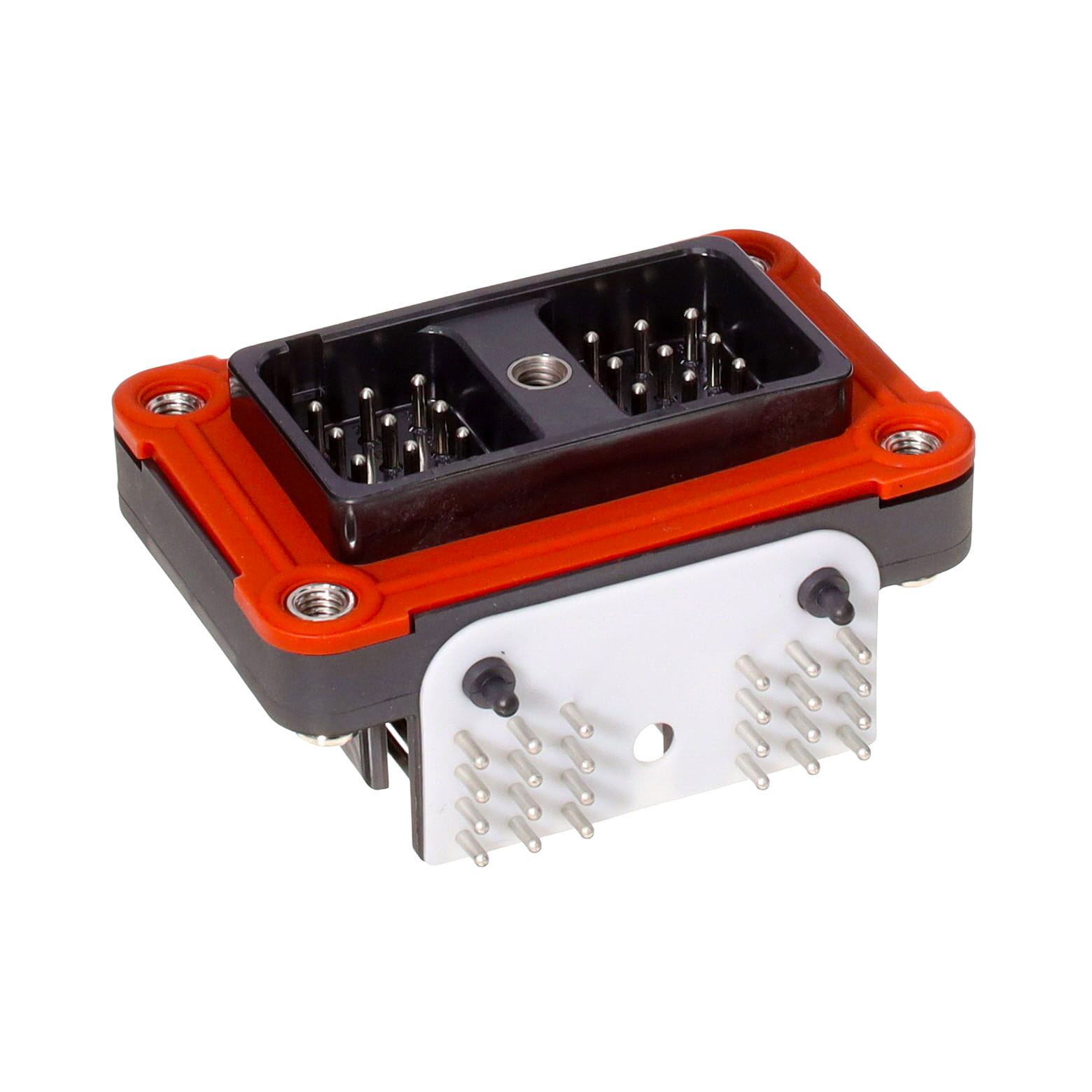

Amphenol Sine Systems Corp ARC13-24PA-BM03SP1
Images are for reference only
Manufacturer
Manufacturer No
ARC13-24PA-BM03SP1
Packaging
Box
Description
24 POSITION PCB RECEPTACLE WITH
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 24 position 0.216" (5.48mm)
Datasheet
Payment
Delivery
Mfr
Amphenol Sine Systems Corp
Style
Board to Cable/Wire
Series
ARC
Features
Mounting Flange, Sealed
Packaging
Box
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
4
Pitch - Mating
0.216" (5.48mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
-
Ingress Protection
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Material
Thermoplastic
Number of Positions
24
Row Spacing - Mating
0.150" (3.81mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Nickel
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Style | Board to Cable/Wire |
| Series | ARC |
| Features | Mounting Flange, Sealed |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 4 |
| Pitch - Mating | 0.216" (5.48mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | - |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Insulation Material | Thermoplastic |
| Number of Positions | 24 |
| Row Spacing - Mating | 0.150" (3.81mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Nickel |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
