Step1: Product

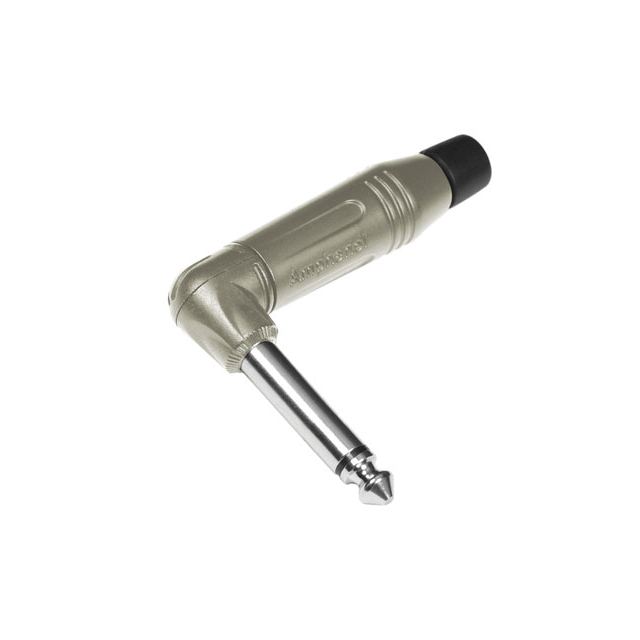

Amphenol Sine Systems Corp ACPM-RN BULK
Images are for reference only
Manufacturer
Manufacturer No
ACPM-RN BULK
Availability
In Stock
Packaging
Box
Description
1/4" R SERIES PHONE 90' MONO NIC
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
Datasheet
Payment
Delivery
Mfr
Amphenol Sine Systems Corp
Gender
Male
Series
MSeries
Features
-
Includes
-
Packaging
Box
Shielding
Unshielded
Body Color
Silver
Termination
Solder Eyelet(s)
Thread Size
-
Signal Lines
Mono
Body Material
-
Cable Opening
0.118" ~ 0.256" (3.00mm ~ 6.50mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Phone Plug
Actual Diameter
0.249" (6.32mm)
Panel Hole Size
-
Voltage - Rated
-
Contact Material
Brass
Housing Material
Zinc Die Cast
Insulation Color
-
Internal Switch(s)
Does Not Contain Switch
Base Product Number
ACPM
Mating Length/Depth
1.205" (30.61mm)
Current Rating (Amps)
10 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Sine Systems Corp |
| Gender | Male |
| Series | MSeries |
| Features | - |
| Includes | - |
| Packaging | Box |
| Shielding | Unshielded |
| Body Color | Silver |
| Termination | Solder Eyelet(s) |
| Thread Size | - |
| Signal Lines | Mono |
| Body Material | - |
| Cable Opening | 0.118" ~ 0.256" (3.00mm ~ 6.50mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Phone Plug |
| Actual Diameter | 0.249" (6.32mm) |
| Panel Hole Size | - |
| Voltage - Rated | - |
| Contact Material | Brass |
| Housing Material | Zinc Die Cast |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | ACPM |
| Mating Length/Depth | 1.205" (30.61mm) |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
