Step1: Product
Amphenol RF 915-1005

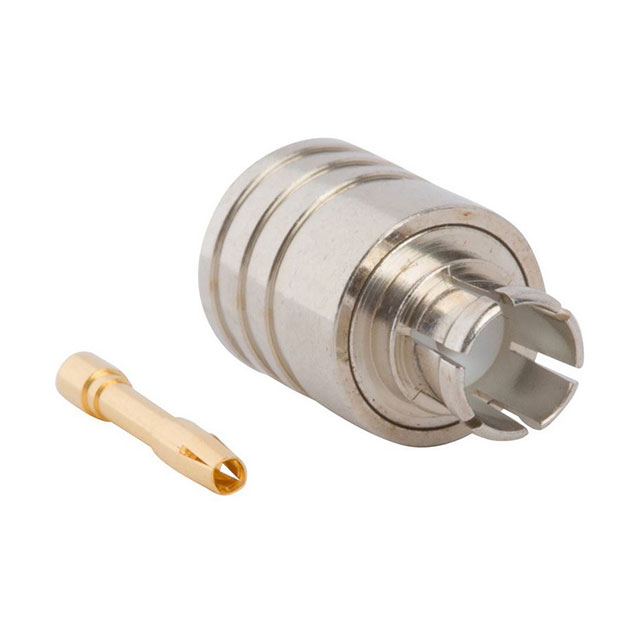

Images are for reference only
Manufacturer
Manufacturer No
915-1005
Packaging
Bag
Description
CONN PSMP PLUG STR 50OHM SOLDER
Detailed Description
PSMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Datasheet
Payment
Delivery
Mfr
Amphenol RF
Series
-
Features
-
Includes
3 pcs - 1 Connector, 1 Contact, 1 Insulator
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Cable Group
RG-405 (.085", .086", .087" Semi Rigid, .085" Conformable)
Body Material
Beryllium Copper
Housing Color
Silver
Mating Cycles
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Socket
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
480 V
Connector Style
PSMP
Frequency - Max
2 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
915
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Series | - |
| Features | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Cable Group | RG-405 (.085", .086", .087" Semi Rigid, .085" Conformable) |
| Body Material | Beryllium Copper |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Socket |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 480 V |
| Connector Style | PSMP |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | 915 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
