Step1: Product

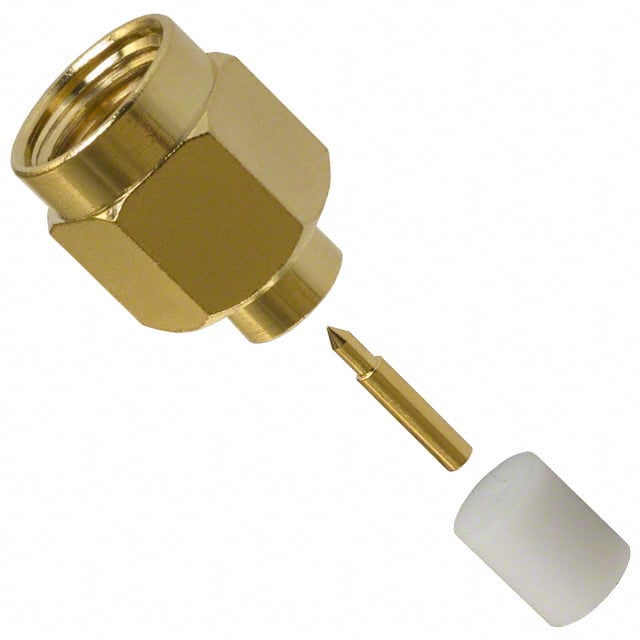

Amphenol RF 901-9868-RFX
Images are for reference only
Manufacturer
Manufacturer No
901-9868-RFX
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN SMA PLUG STR 50 OHM SOLDER
Detailed Description
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Datasheet
Payment
Delivery
Mfr
Amphenol RF
Series
-
Features
-
Includes
3 pcs - 1 Connector, 1 Contact, 1 Insulator
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
RG-402 (.141" Semi Rigid)
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
-
Connector Style
SMA
Frequency - Max
18 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
901-98
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Series | - |
| Features | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | RG-402 (.141" Semi Rigid) |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Connector Style | SMA |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | 901-98 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
