Step1: Product
Amphenol RF 242137

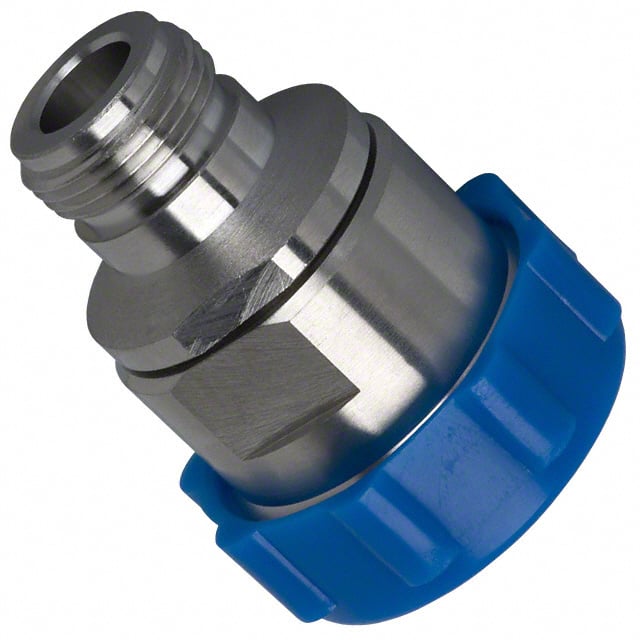

Images are for reference only
Manufacturer
Manufacturer No
242137
Packaging
Bag
Description
COAX ADAPT N TO 7/16 DIN
Detailed Description
Adapter Coaxial Connector N Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
Datasheet
Payment
Delivery
Mfr
Amphenol RF
Style
Straight
Series
-
Features
Low PIM
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Adapter Type
Jack to Jack
Body Material
Brass
Center Gender
Female to Female
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
N to 7/16 DIN
Fastening Type
Threaded, Threaded
Insertion Loss
0.10dB
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
-
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
2421
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Silver
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
7/16 Jack, Female Socket
Convert From (Adapter End)
N Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Style | Straight |
| Series | - |
| Features | Low PIM |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Adapter Type | Jack to Jack |
| Body Material | Brass |
| Center Gender | Female to Female |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | N to 7/16 DIN |
| Fastening Type | Threaded, Threaded |
| Insertion Loss | 0.10dB |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 2421 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Silver |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | 7/16 Jack, Female Socket |
| Convert From (Adapter End) | N Jack, Female Socket |
