Step1: Product
Amphenol RF 172185

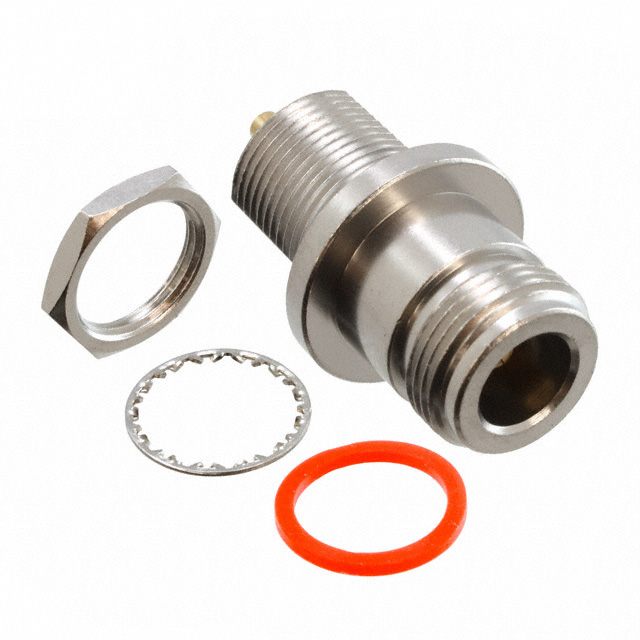

Images are for reference only
Manufacturer
Manufacturer No
172185
Quantity
3
Availability
In Stock
Packaging
Bag
Description
CONN N RCPT STR 50 OHM SOLDER
Detailed Description
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol RF
Series
-
Features
-
Includes
4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel
Cable Group
-
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Insertion Loss
0.15dB
Voltage Rating
1500 V
Connector Style
N Type
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Rear Side Nut
Ingress Protection
Weatherproof
Shield Termination
Solder
Base Product Number
1721
Contact Termination
Solder Cup
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Series | - |
| Features | - |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | 0.15dB |
| Voltage Rating | 1500 V |
| Connector Style | N Type |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Ingress Protection | Weatherproof |
| Shield Termination | Solder |
| Base Product Number | 1721 |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
