Step1: Product

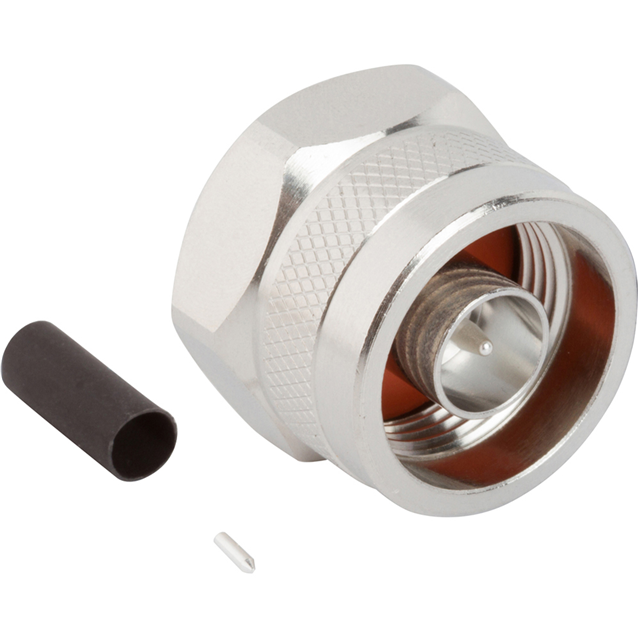

Amphenol RF 082-6686
Images are for reference only
Manufacturer
Manufacturer No
082-6686
Packaging
Bag
Description
RF CONNECTOR N-TYPE STRAIGHT SOL
Detailed Description
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Datasheet
Payment
Delivery
Mfr
Amphenol RF
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
White Bronze
Cable Group
RG-405 (.085" Semi Rigid, .085" Conformable)
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
-
Connector Style
N Type
Frequency - Max
18 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
082-668
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Silver
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Amphenol RF |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | White Bronze |
| Cable Group | RG-405 (.085" Semi Rigid, .085" Conformable) |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Connector Style | N Type |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | 082-668 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Silver |
| Center Contact Material | Phosphor Bronze |
