Step1: Product

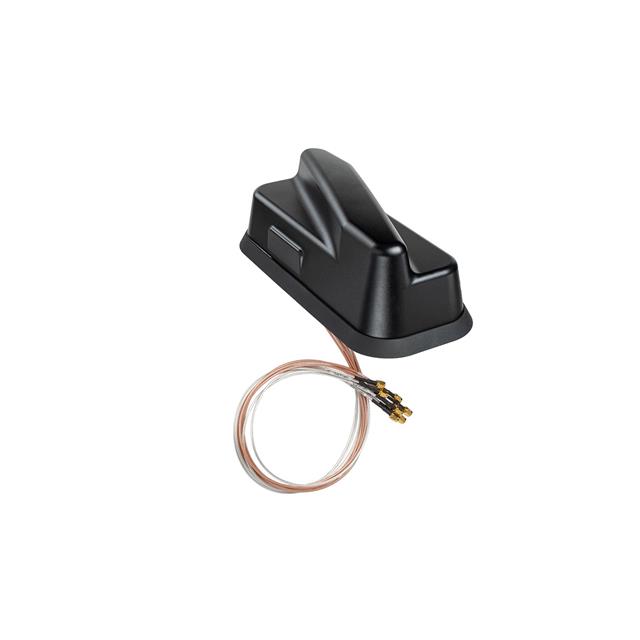

Amphenol PCTEL GL9X1AX-TRB-KIT
Images are for reference only
Manufacturer
Manufacturer No
GL9X1AX-TRB-KIT
Availability
In Stock
Packaging
Box
Description
TROOPER II SLENDER DUAL CARRIER
Detailed Description
RF ANTENNA 802.11ax, GNSS, Wi-Fi Module SMA Male (3) Through Hole
Datasheet
Payment
Delivery
Gain
-0.6dBi, 1.5dBi, 2dBi, 1dBi, 1dBi, 2.6dBi, 1dBi, 3dBi, 2.6dBi, 3.9dBi, 4.1dBi, 2.3dBi, 2.6dBi, 4dBi, 4.8dBi, 4.5dBi, 4.7dBi, 1.9dBi, 3.4dBi, 3.6dBi, 5dBi
VSWR
2
Series
Trooper™ II
Features
Cable - 609.6mm
Packaging
Box
Power - Max
25 W
Return Loss
-
Termination
SMA Male (3)
Antenna Type
Module
Applications
802.11ax, GNSS, Wi-Fi
Height (Max)
3.543" (90.00mm)
Manufacturer
Amphenol PCTEL
Mounting Type
Through Hole
Frequency Group
Wide Band
Frequency Range
600MHz ~ 698MHz, 617MHz ~ 802MHz, 617MHz ~ 802MHz, 698MHz ~ 894MHz, 733MHz ~ 960MHz, 824MHz ~ 960MHz, 880MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 3.4GHz ~ 5.9GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz
Number of Bands
17
Ingress Protection
IP67
RF Family/Standard
Cellular, WiFi
Frequency (Center/Band)
657.5MHz, 750MHz, 767.5MHz, 780MHz, 788.5MHz, 859MHz, 920MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.205GHz, 2.45GHz, 2.495GHz, 3.8GHz, 4.6GHz, 5.4GHz, 5.55GHz
| Attribute | Value |
|---|---|
| Gain | -0.6dBi, 1.5dBi, 2dBi, 1dBi, 1dBi, 2.6dBi, 1dBi, 3dBi, 2.6dBi, 3.9dBi, 4.1dBi, 2.3dBi, 2.6dBi, 4dBi, 4.8dBi, 4.5dBi, 4.7dBi, 1.9dBi, 3.4dBi, 3.6dBi, 5dBi |
| VSWR | 2 |
| Series | Trooper™ II |
| Features | Cable - 609.6mm |
| Packaging | Box |
| Power - Max | 25 W |
| Return Loss | - |
| Termination | SMA Male (3) |
| Antenna Type | Module |
| Applications | 802.11ax, GNSS, Wi-Fi |
| Height (Max) | 3.543" (90.00mm) |
| Manufacturer | Amphenol PCTEL |
| Mounting Type | Through Hole |
| Frequency Group | Wide Band |
| Frequency Range | 600MHz ~ 698MHz, 617MHz ~ 802MHz, 617MHz ~ 802MHz, 698MHz ~ 894MHz, 733MHz ~ 960MHz, 824MHz ~ 960MHz, 880MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 3.4GHz ~ 5.9GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz |
| Number of Bands | 17 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular, WiFi |
| Frequency (Center/Band) | 657.5MHz, 750MHz, 767.5MHz, 780MHz, 788.5MHz, 859MHz, 920MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.205GHz, 2.45GHz, 2.495GHz, 3.8GHz, 4.6GHz, 5.4GHz, 5.55GHz |
