Step1: Product

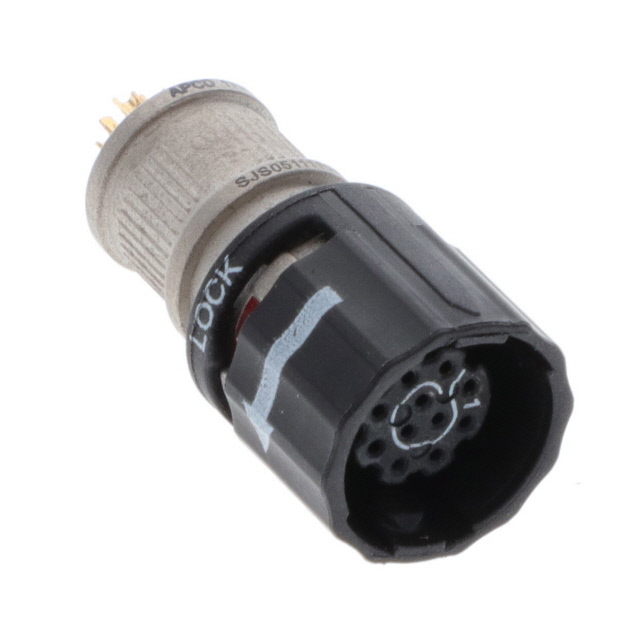

Amphenol PCD SJS0511110P
Images are for reference only
Manufacturer
Manufacturer No
SJS0511110P
Packaging
Bag
Description
CONN PLUG FMALE 11P SOLDER CUP
Detailed Description
11 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol PCD
Color
-
Series
Nano-Pegasus
Features
Coupling Nut
Packaging
Bag
Shielding
Shielded
Orientation
-
Termination
Solder Cup
Shell Finish
-
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Polyetherimide (PEI)
Voltage Rating
-
Insert Material
Polyetherimide (PEI)
Shell Size, MIL
-
Contact Material
Bronze Alloy
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
Environment Sealed
Base Product Number
SJS05111
Number of Positions
11
Shell Size - Insert
5
Current Rating (Amps)
-
Operating Temperature
-65°C ~ 150°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol PCD |
| Color | - |
| Series | Nano-Pegasus |
| Features | Coupling Nut |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | - |
| Termination | Solder Cup |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Polyetherimide (PEI) |
| Voltage Rating | - |
| Insert Material | Polyetherimide (PEI) |
| Shell Size, MIL | - |
| Contact Material | Bronze Alloy |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | Environment Sealed |
| Base Product Number | SJS05111 |
| Number of Positions | 11 |
| Shell Size - Insert | 5 |
| Current Rating (Amps) | - |
| Operating Temperature | -65°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
