Step1: Product

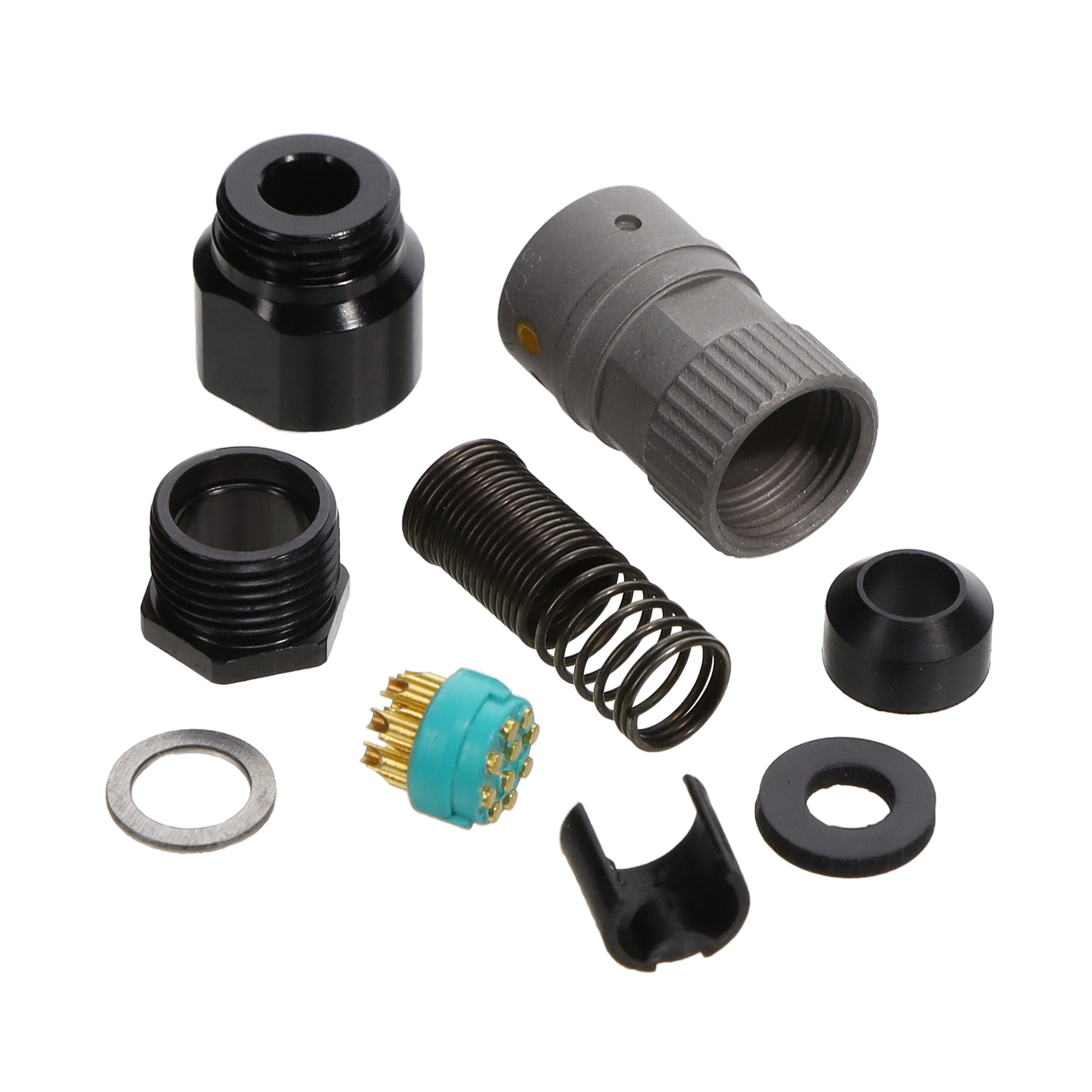

Amphenol NEXUS Technologies MAP-60-30
Images are for reference only
Manufacturer
Manufacturer No
MAP-60-30
Packaging
Bag
Description
CONN PLUG FMALE 10P SOLDER CUP
Detailed Description
10 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol NEXUS Technologies
Color
Black, Silver
Series
-
Features
Backshell, Coupling Nut, Strain Relief
Packaging
Bag
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
Audio, Communication Systems, Military, Video
Shell Finish
Passivated
Cable Opening
0.250" (6.35mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Stainless Steel
Voltage Rating
60V
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
-
Primary Material
Metal
Ingress Protection
-
Base Product Number
MAP-60
Number of Positions
10
Shell Size - Insert
-
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol NEXUS Technologies |
| Color | Black, Silver |
| Series | - |
| Features | Backshell, Coupling Nut, Strain Relief |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Audio, Communication Systems, Military, Video |
| Shell Finish | Passivated |
| Cable Opening | 0.250" (6.35mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Stainless Steel |
| Voltage Rating | 60V |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | - |
| Base Product Number | MAP-60 |
| Number of Positions | 10 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
