Step1: Product
Amphenol LTW ZA-36AFRS-BA0001

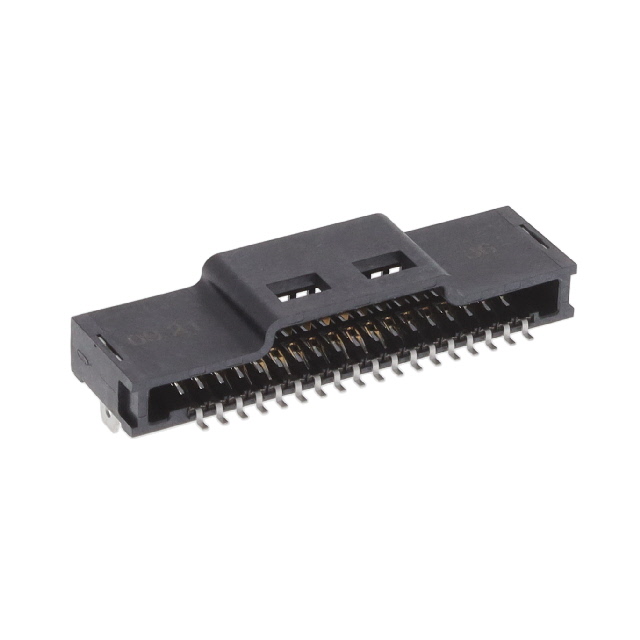

Images are for reference only
Manufacturer
Manufacturer No
ZA-36AFRS-BA0001
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC BOTTOM 36POS 0.9MM R/A
Detailed Description
36 Position FFC, FPC Connector Contacts, Bottom 0.035" (0.90mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.035" (0.90mm)
Series
ZCONNECT
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Amphenol LTW
Housing Color
Black
Mating Cycles
-
Mounting Type
Surface Mount, Right Angle
Actuator Color
-
Cable End Type
-
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
120V
Locking Feature
-
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Actuator Material
-
FFC, FCB Thickness
-
Height Above Board
0.311" (7.90mm)
Base Product Number
ZA-36AFRS
Number of Positions
36
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 110°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
-
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Pitch | 0.035" (0.90mm) |
| Series | ZCONNECT |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Amphenol LTW |
| Housing Color | Black |
| Mating Cycles | - |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | - |
| Cable End Type | - |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 120V |
| Locking Feature | - |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| FFC, FCB Thickness | - |
| Height Above Board | 0.311" (7.90mm) |
| Base Product Number | ZA-36AFRS |
| Number of Positions | 36 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 110°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
