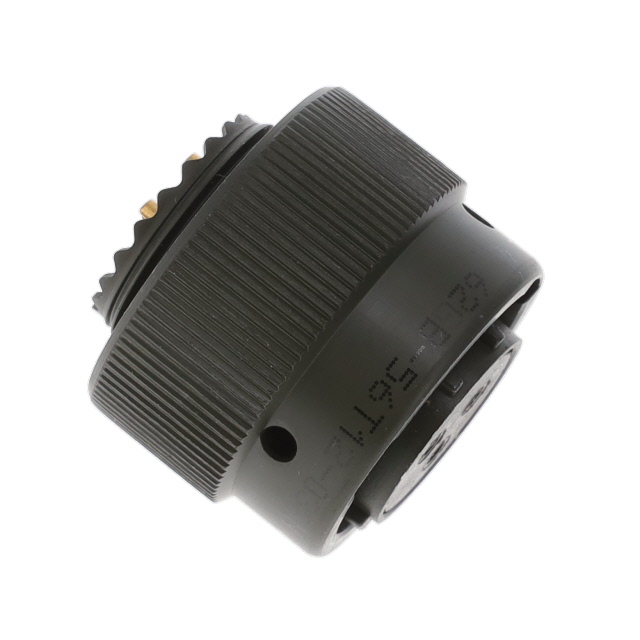

Amphenol Limited 62GB-56T12-03SN
Images are for reference only
Manufacturer
Manufacturer No
62GB-56T12-03SN
Packaging
Bulk
Description
62GB 3C 3#16 SKT PLUG
Detailed Description
3 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Limited
Color
Olive Drab
Grade
Military
Series
62GB
Features
Coupling Nut
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Zinc Cobalt
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Qualification
MIL-C-26482
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
-
Insert Material
Polychloroprene
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
-
Base Product Number
62GB56
Number of Positions
3
Shell Size - Insert
12-3
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Aluminum, Olive Drab Zinc Cobalt
Material Flammability Rating
-
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Limited |
| Color | Olive Drab |
| Grade | Military |
| Series | 62GB |
| Features | Coupling Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Zinc Cobalt |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | MIL-C-26482 |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | - |
| Insert Material | Polychloroprene |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | - |
| Base Product Number | 62GB56 |
| Number of Positions | 3 |
| Shell Size - Insert | 12-3 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Aluminum, Olive Drab Zinc Cobalt |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
