Step1: Product

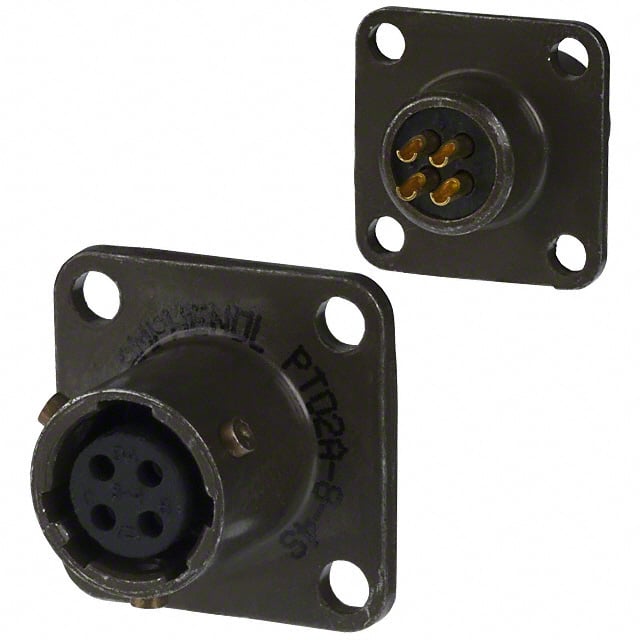

Amphenol Industrial Operations PT02A-8-4S
Images are for reference only
Manufacturer
Manufacturer No
PT02A-8-4S
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT FMALE 4P GOLD SLDR CUP
Detailed Description
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Industrial Operations
Color
Olive Drab
Grade
-
Series
PT
Features
-
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Aerospace, Industrial, Instrumentation, Mass Transit, Military
Shell Finish
Olive Drab Chromate over Cadmium
Cable Opening
-
Mounting Type
Panel Mount
Qualification
MIL-DTL-26482 Series I
Connector Type
Receptacle, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
-
Insert Material
Neoprene
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
-
Base Product Number
PT02A
Number of Positions
4
Shell Size - Insert
8-4
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Aluminum, Olive Drab Cadmium
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | Olive Drab |
| Grade | - |
| Series | PT |
| Features | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Aerospace, Industrial, Instrumentation, Mass Transit, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-26482 Series I |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | - |
| Insert Material | Neoprene |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | - |
| Base Product Number | PT02A |
| Number of Positions | 4 |
| Shell Size - Insert | 8-4 |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Aluminum, Olive Drab Cadmium |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
