Step1: Product

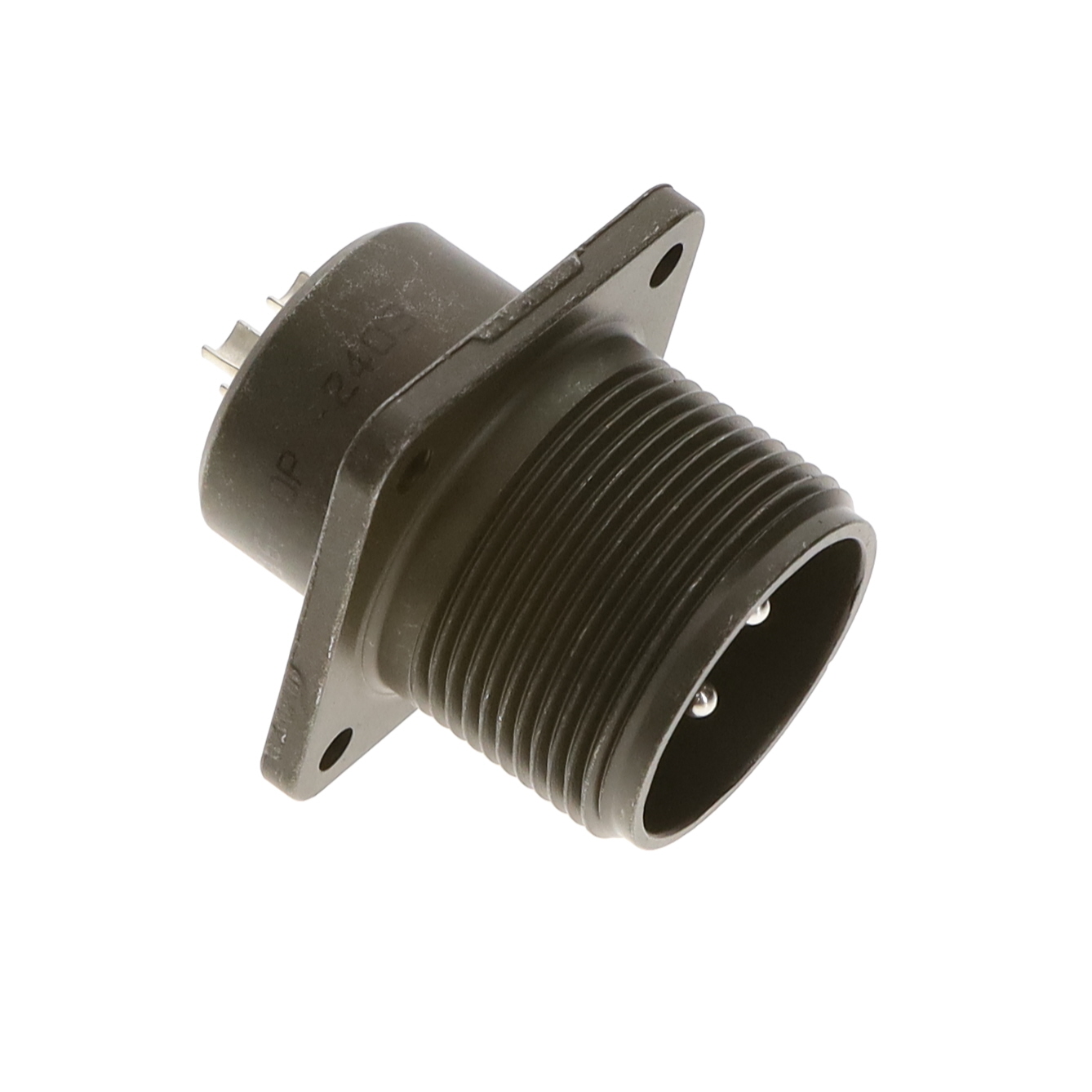

Amphenol Industrial Operations MS3102E16-10P
Images are for reference only
Manufacturer
Manufacturer No
MS3102E16-10P
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT MALE 3P SILV SLDR CUP
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Industrial Operations
Color
Olive Drab
Grade
Military
Series
MS
Features
-
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Marine, Military
Shell Finish
Olive Drab Chromate over Cadmium
Cable Opening
0.875" (22.22mm)
Mounting Type
Panel Mount
Qualification
MIL-DTL-5015
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
-
Insert Material
Neoprene
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Base Product Number
MS3102E16
Number of Positions
3
Shell Size - Insert
16-10
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | Olive Drab |
| Grade | Military |
| Series | MS |
| Features | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Marine, Military |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Cable Opening | 0.875" (22.22mm) |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-5015 |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | - |
| Insert Material | Neoprene |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Base Product Number | MS3102E16 |
| Number of Positions | 3 |
| Shell Size - Insert | 16-10 |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
