Step1: Product

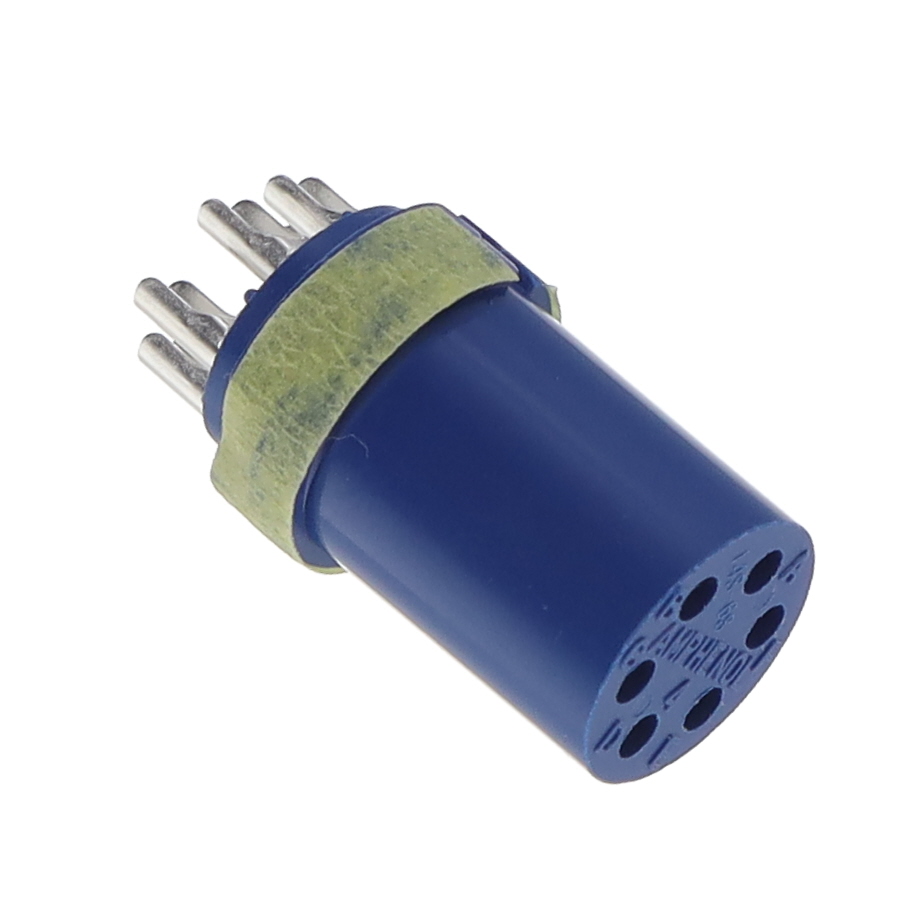

Amphenol Industrial Operations 97-14S-6S(431)
Images are for reference only
Manufacturer
Manufacturer No
97-14S-6S(431)
Packaging
Bag
Description
MIL-5015 97 THREADED INSERT ASSY
Detailed Description
6 Position Circular Connector Insert, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Industrial Operations
Color
-
Series
97
Features
Insert Only, Requires Shell
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Automotive, Industrial
Shell Finish
-
Cable Opening
-
Mounting Type
-
Connector Type
Insert, Female Sockets
Fastening Type
-
Shell Material
-
Voltage Rating
-
Insert Material
Diallyl Phthalate (DAP)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
-
Ingress Protection
-
Number of Positions
6
Shell Size - Insert
14S-6
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Silver
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Industrial Operations |
| Color | - |
| Series | 97 |
| Features | Insert Only, Requires Shell |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Automotive, Industrial |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | - |
| Connector Type | Insert, Female Sockets |
| Fastening Type | - |
| Shell Material | - |
| Voltage Rating | - |
| Insert Material | Diallyl Phthalate (DAP) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | - |
| Ingress Protection | - |
| Number of Positions | 6 |
| Shell Size - Insert | 14S-6 |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
