Step1: Product

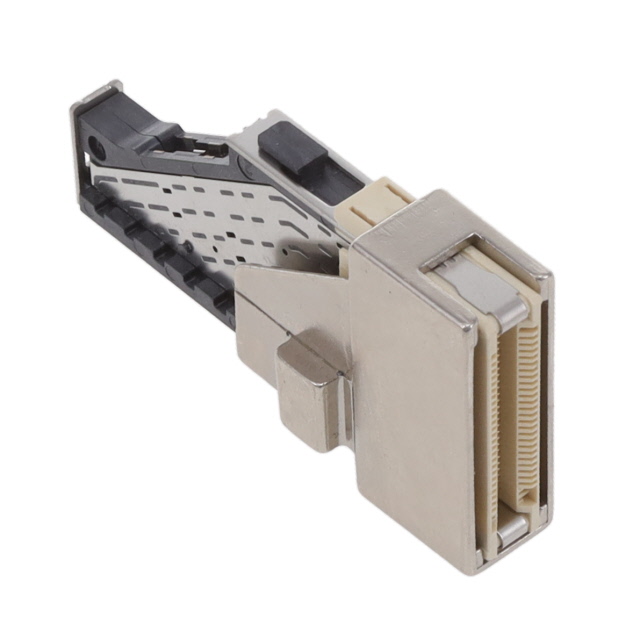

Amphenol ICC (FCI) ME3005602311011
Images are for reference only
Manufacturer
Manufacturer No
ME3005602311011
Availability
In Stock
Packaging
Tube
Description
CONN EDGE DUAL FMALE 56POS 0.024
Detailed Description
56 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Natural
Datasheet
Payment
Delivery
Color
Natural
Pitch
0.024" (0.60mm)
Gender
Female
Series
Mini Cool Edge 0.60mm
Features
-
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Tube
Termination
Press-Fit
Contact Type
Cantilever
Manufacturer
Amphenol ICC (FCI)
Mounting Type
Through Hole, Right Angle
Card Thickness
0.062" (1.57mm)
Contact Finish
Gold
Flange Feature
-
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
ME30056
Number of Positions
56
Material - Insulation
Thermoplastic
Operating Temperature
-55°C ~ 105°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
28
| Attribute | Value |
|---|---|
| Color | Natural |
| Pitch | 0.024" (0.60mm) |
| Gender | Female |
| Series | Mini Cool Edge 0.60mm |
| Features | - |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Tube |
| Termination | Press-Fit |
| Contact Type | Cantilever |
| Manufacturer | Amphenol ICC (FCI) |
| Mounting Type | Through Hole, Right Angle |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Flange Feature | - |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | ME30056 |
| Number of Positions | 56 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 28 |
