Step1: Product

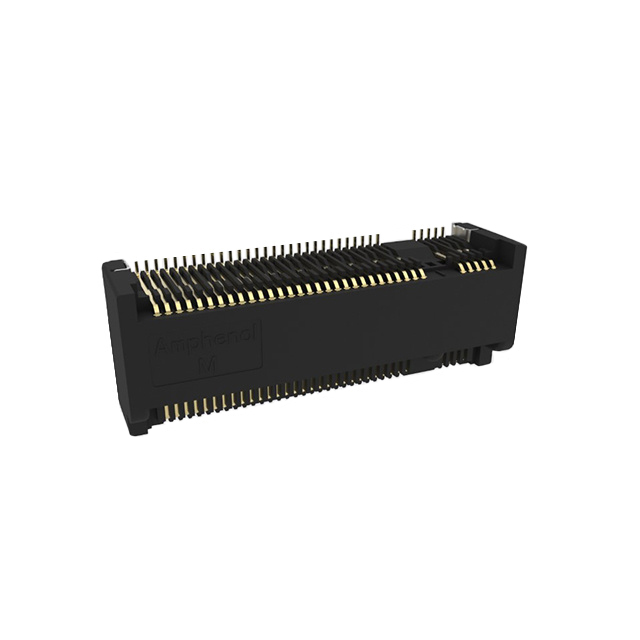

Amphenol ICC (FCI) MDT580A01002
Images are for reference only
Manufacturer
Manufacturer No
MDT580A01002
Packaging
Tape & Reel (TR)
Description
M.2 R/A A KEY 5.80H
Detailed Description
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
Datasheet
Payment
Delivery
Color
Black
Pitch
0.020" (0.50mm)
Gender
Female
Series
M.2
Features
Board Guide, Keyed A
Read Out
Dual
Card Type
M.2 (NGFF) Mini Card
Packaging
Tape & Reel (TR)
Termination
Solder
Contact Type
-
Manufacturer
Amphenol ICC (FCI)
Mounting Type
Surface Mount, Right Angle
Card Thickness
-
Contact Finish
Gold
Flange Feature
-
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Number of Positions
67
Material - Insulation
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
29; 5R1, 29; 4R2
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.020" (0.50mm) |
| Gender | Female |
| Series | M.2 |
| Features | Board Guide, Keyed A |
| Read Out | Dual |
| Card Type | M.2 (NGFF) Mini Card |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Contact Type | - |
| Manufacturer | Amphenol ICC (FCI) |
| Mounting Type | Surface Mount, Right Angle |
| Card Thickness | - |
| Contact Finish | Gold |
| Flange Feature | - |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 2 |
| Number of Positions | 67 |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 29; 5R1, 29; 4R2 |
