Step1: Product

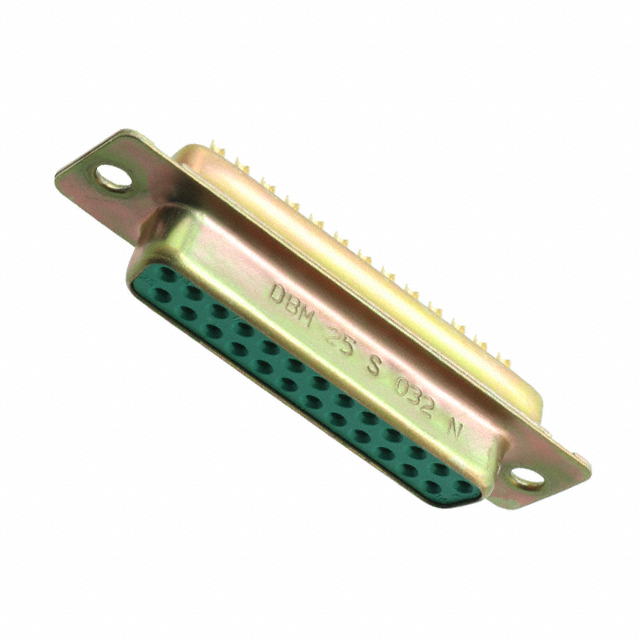

Amphenol ICC (FCI) DBM25S032N
Images are for reference only
Manufacturer
Manufacturer No
DBM25S032N
Packaging
Bulk
Description
CONN D-SUB RCPT 25POS SOLDER CUP
Detailed Description
25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (FCI)
Color
-
Series
DM HE508
Features
-
Packaging
Bulk
Wire Gauge
-
Termination
Solder Cup
Contact Form
Machined
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
300V
Backset Spacing
-
Connector Style
D-Sub
Contact Material
Copper Alloy
Ingress Protection
-
Base Product Number
DBM25S0
Dielectric Material
Thermoplastic
Number of Positions
25
Current Rating (Amps)
7.5A per Contact
Operating Temperature
-55°C ~ 155°C
Shell Material, Finish
Steel, Cadmium Plated
Contact Finish Thickness
50.0µin (1.27µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Color | - |
| Series | DM HE508 |
| Features | - |
| Packaging | Bulk |
| Wire Gauge | - |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Base Product Number | DBM25S0 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 25 |
| Current Rating (Amps) | 7.5A per Contact |
| Operating Temperature | -55°C ~ 155°C |
| Shell Material, Finish | Steel, Cadmium Plated |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
