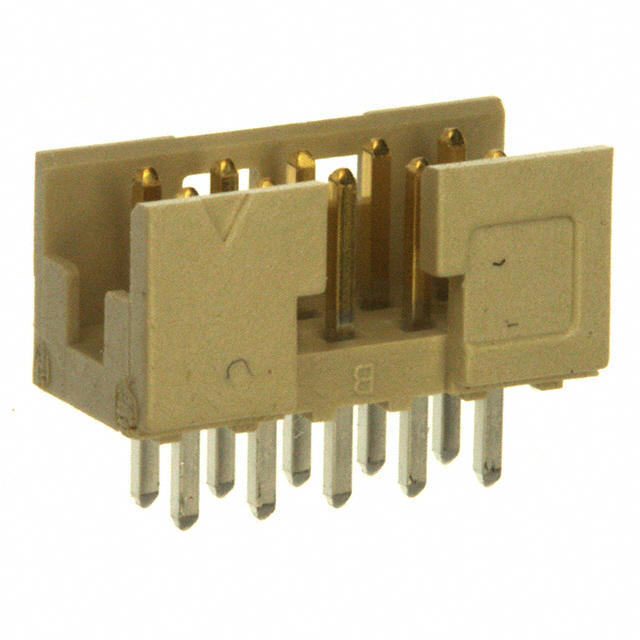

Amphenol ICC (FCI) 98414-G06-10ULF
Images are for reference only
Manufacturer
Manufacturer No
98414-G06-10ULF
Quantity
36
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 10POS 2MM
Detailed Description
Connector Header Through Hole 10 position 0.079" (2.00mm)
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (FCI)
Style
Board to Board or Cable
Series
Minitek® 2.00mm
Features
Keying Slot
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
200V (AC/DC)
Contact Material
Copper Alloy
Insulation Color
Cream
Insulation Height
0.232" (5.90mm)
Ingress Protection
-
Base Product Number
98414
Insulation Material
Thermoplastic
Number of Positions
10
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.098" (2.50mm)
Current Rating (Amps)
2A (AC/DC)
Operating Temperature
-
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold, GXT™
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Board or Cable |
| Series | Minitek® 2.00mm |
| Features | Keying Slot |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200V (AC/DC) |
| Contact Material | Copper Alloy |
| Insulation Color | Cream |
| Insulation Height | 0.232" (5.90mm) |
| Ingress Protection | - |
| Base Product Number | 98414 |
| Insulation Material | Thermoplastic |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.098" (2.50mm) |
| Current Rating (Amps) | 2A (AC/DC) |
| Operating Temperature | - |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
