Step1: Product

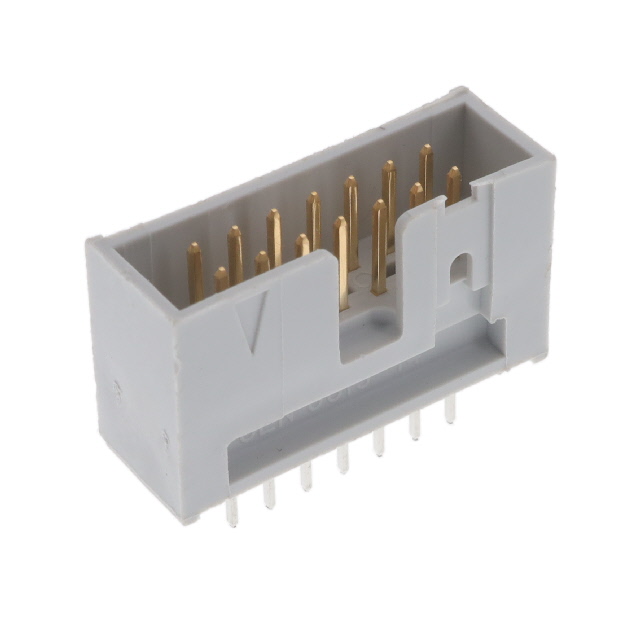

Amphenol ICC (FCI) 86130141014345E1LF
Images are for reference only
Manufacturer
Manufacturer No
86130141014345E1LF
Packaging
Tray
Description
CONN HEADER VERT 14POS 2.54MM
Detailed Description
Connector Header Through Hole 14 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Quickie™
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Gray
Insulation Height
0.557" (14.15mm)
Ingress Protection
-
Base Product Number
86130141
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
14
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.171" (4.35mm)
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold or Gold-Palladium
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Quickie™ |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Gray |
| Insulation Height | 0.557" (14.15mm) |
| Ingress Protection | - |
| Base Product Number | 86130141 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 14 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.171" (4.35mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
