Step1: Product

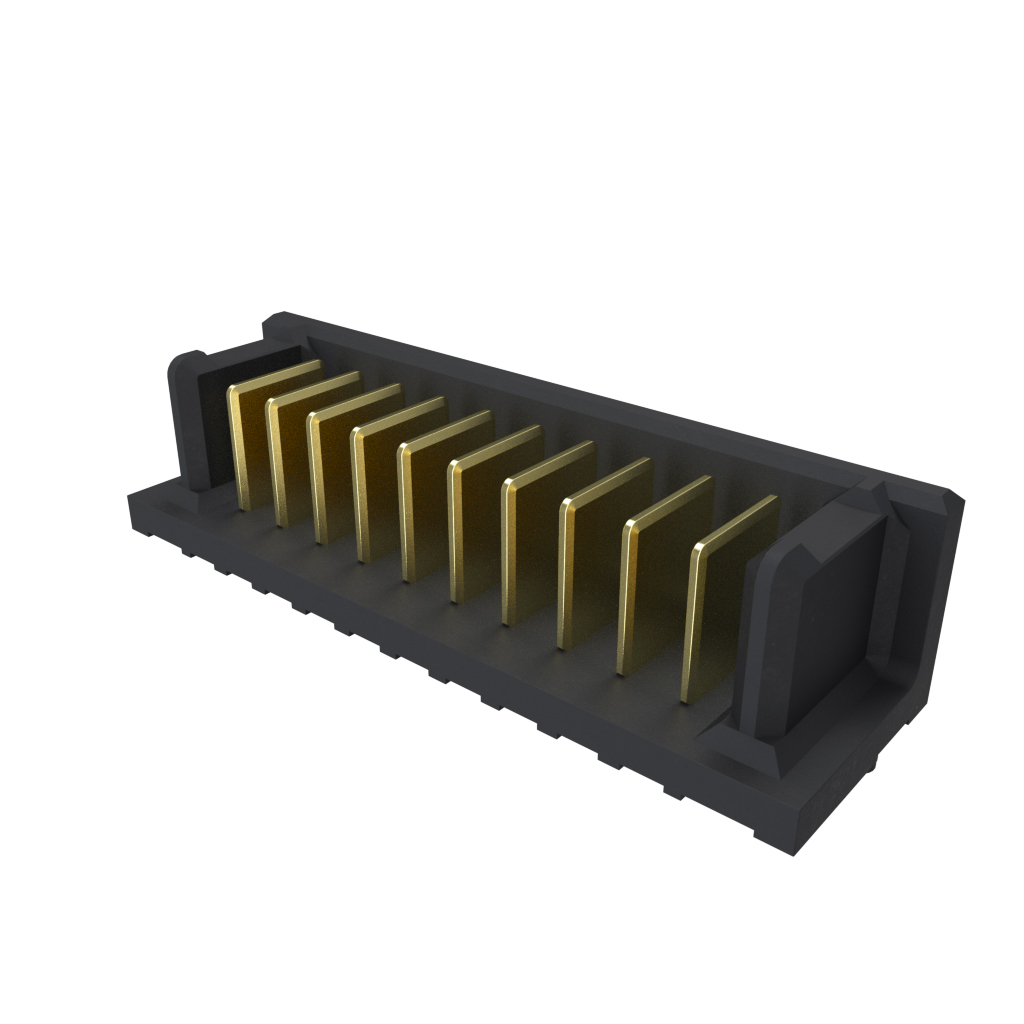

Amphenol ICC (FCI) 10179680-10001LF
Images are for reference only
Manufacturer
Manufacturer No
10179680-10001LF
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
BATTERY HEADER RIGHT ANGLE 10PIN
Detailed Description
10 Position Header, Male Blades Connector Solder 0.118" (3.00mm) Through Hole
Datasheet
Payment
Delivery
Color
Black
Pitch
0.118" (3.00mm)
Series
-
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Wire Gauge
-
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Mounting Type
Through Hole
Connector Type
Header, Male Blades
Contact Finish
Gold
Fastening Type
Push-Pull
Number of Rows
1
Connector Style
Battery
Contact Material
Copper Alloy
Number of Positions
10
Current Rating (Amps)
5 A
Material - Insulation
Thermoplastic
Operating Temperature
-55°C ~ 105°C
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.118" (3.00mm) |
| Series | - |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Wire Gauge | - |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Mounting Type | Through Hole |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Connector Style | Battery |
| Contact Material | Copper Alloy |
| Number of Positions | 10 |
| Current Rating (Amps) | 5 A |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
