Step1: Product

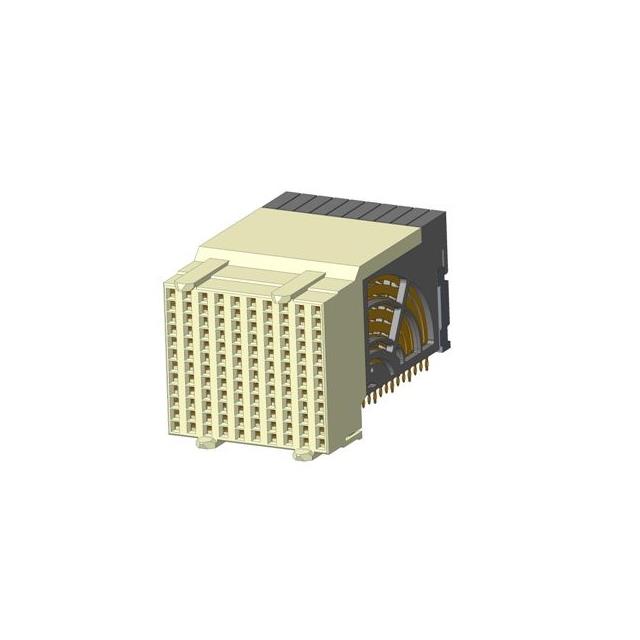

Amphenol ICC (FCI) 10148773-101LF
Images are for reference only
Manufacturer
Manufacturer No
10148773-101LF
Availability
In Stock
Packaging
Tube
Description
AIRMAX VSE, BACKPLANE CONNECTORS
Detailed Description
120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
Datasheet
Payment
Delivery
Color
Natural
Pitch
0.079" (2.00mm)
Series
Airmax VSe®
Features
-
Packaging
Tube
Termination
Press-Fit
Manufacturer
Amphenol ICC (FCI)
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold, GXT™
Number of Rows
12
Voltage Rating
30VAC/DC
Connector Style
High Speed
Connector Usage
Daughtercard
Number of Columns
10
Number of Positions
120
Current Rating (Amps)
500mA per Contact
Operating Temperature
-55°C ~ 85°C
Contact Layout, Typical
-
Contact Finish Thickness
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Natural |
| Pitch | 0.079" (2.00mm) |
| Series | Airmax VSe® |
| Features | - |
| Packaging | Tube |
| Termination | Press-Fit |
| Manufacturer | Amphenol ICC (FCI) |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold, GXT™ |
| Number of Rows | 12 |
| Voltage Rating | 30VAC/DC |
| Connector Style | High Speed |
| Connector Usage | Daughtercard |
| Number of Columns | 10 |
| Number of Positions | 120 |
| Current Rating (Amps) | 500mA per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Contact Layout, Typical | - |
| Contact Finish Thickness | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
