Step1: Product

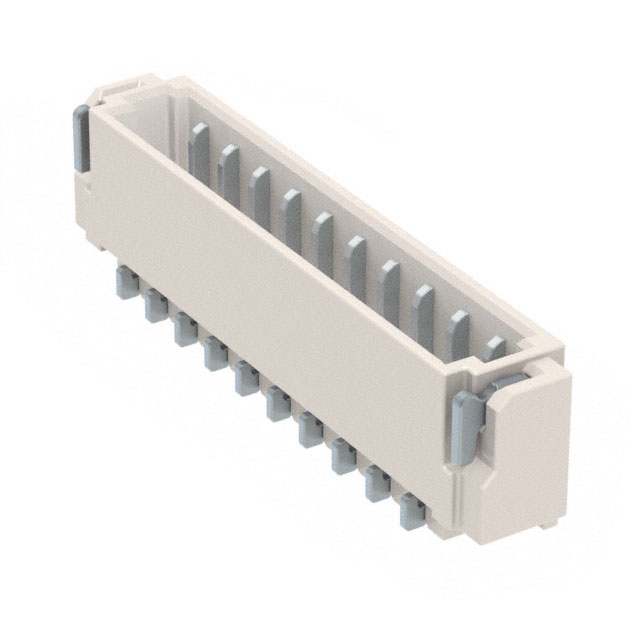

Amphenol ICC (FCI) 10144041-10011LF
Images are for reference only
Manufacturer
Manufacturer No
10144041-10011LF
Quantity
95
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 10POS 0.8MM
Detailed Description
Connector Header Surface Mount, Right Angle 10 position 0.031" (0.80mm)
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (FCI)
Style
Board to Cable/Wire
Series
Minitek® 0.80mm
Features
Glow Wire Compliant, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.031" (0.80mm)
Voltage Rating
30VAC
Contact Material
Copper Alloy
Insulation Color
Cream
Insulation Height
0.069" (1.75mm)
Ingress Protection
-
Base Product Number
10144041
Insulation Material
Liquid Crystal Polymer (LCP), Halogen Free
Number of Positions
10
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Style | Board to Cable/Wire |
| Series | Minitek® 0.80mm |
| Features | Glow Wire Compliant, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.031" (0.80mm) |
| Voltage Rating | 30VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Cream |
| Insulation Height | 0.069" (1.75mm) |
| Ingress Protection | - |
| Base Product Number | 10144041 |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Number of Positions | 10 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
