Step1: Product

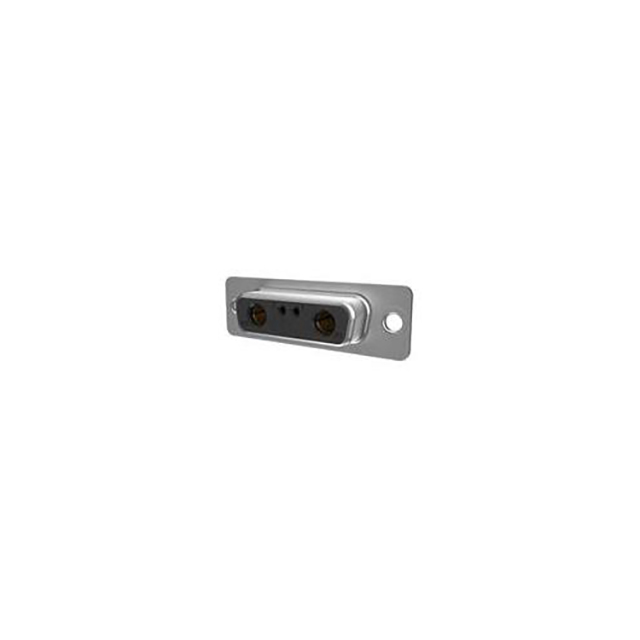

Amphenol ICC (FCI) 10070165-00119ALF
Images are for reference only
Manufacturer
Manufacturer No
10070165-00119ALF
Quantity
25
Availability
In Stock
Packaging
Box
Description
CONN D-SUB RCPT 4POS SOLDER CUP
Detailed Description
4 (2 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (FCI)
Color
-
Series
MicroTCA™
Features
-
Packaging
Box
Wire Gauge
8 AWG, 20-24 AWG
Termination
Solder Cup
Contact Form
-
Contact Type
Signal and Power (Not Included)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
1
Voltage Rating
48V
Backset Spacing
-
Connector Style
D-Sub, Combo
Contact Material
Copper Alloy
Ingress Protection
-
Base Product Number
10070165
Dielectric Material
Thermoplastic
Number of Positions
4 (2 + 2 Power)
Current Rating (Amps)
0.375A, 24A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
-
Material Flammability Rating
-
Shell Size, Connector Layout
2 (DA, A) - 4W2
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (FCI) |
| Color | - |
| Series | MicroTCA™ |
| Features | - |
| Packaging | Box |
| Wire Gauge | 8 AWG, 20-24 AWG |
| Termination | Solder Cup |
| Contact Form | - |
| Contact Type | Signal and Power (Not Included) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 1 |
| Voltage Rating | 48V |
| Backset Spacing | - |
| Connector Style | D-Sub, Combo |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Base Product Number | 10070165 |
| Dielectric Material | Thermoplastic |
| Number of Positions | 4 (2 + 2 Power) |
| Current Rating (Amps) | 0.375A, 24A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
| Shell Size, Connector Layout | 2 (DA, A) - 4W2 |
