Step1: Product

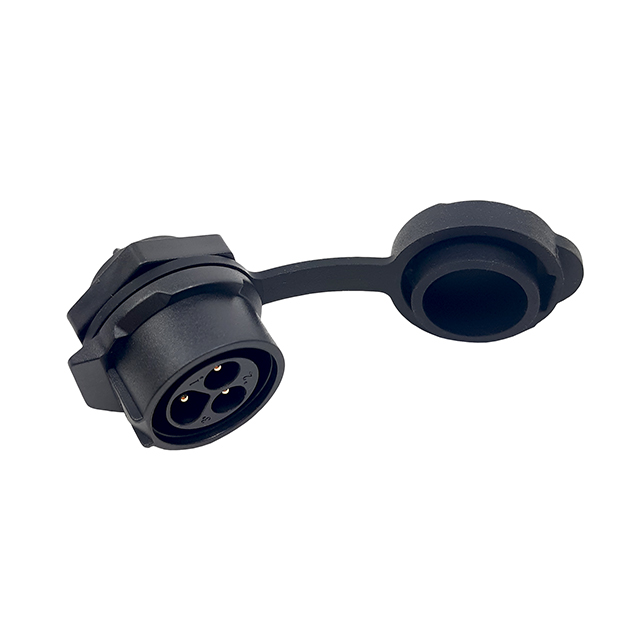

Amphenol ICC (Commercial Products) MRDBJ03L13000
Images are for reference only
Manufacturer
Manufacturer No
MRDBJ03L13000
Quantity
5
Availability
In Stock
Packaging
Box
Description
CONN RCPT MALE 3P GOLD SLDR CUP
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
BrightConnX™ MRD
Features
Dust Cap
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Termination
Solder Cup
Applications
Industrial
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Latch Lock
Shell Material
Polybutylene Terephthalate (PBT)
Voltage Rating
500VAC
Insert Material
Polybutylene Terephthalate (PBT)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Plastic
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
MRD
Number of Positions
3
Shell Size - Insert
-
Current Rating (Amps)
10A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | BrightConnX™ MRD |
| Features | Dust Cap |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Latch Lock |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Voltage Rating | 500VAC |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | MRD |
| Number of Positions | 3 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 10A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
