Step1: Product

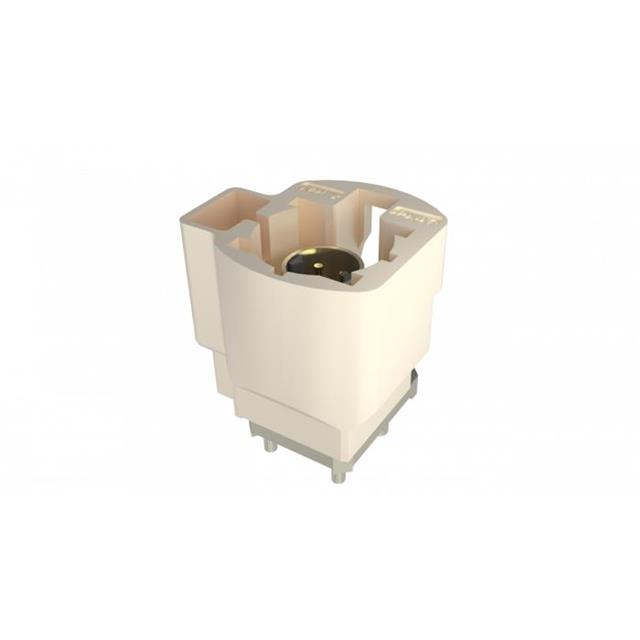

Amphenol ICC (Commercial Products) HSDNBSPPCB15A
Images are for reference only
Manufacturer
Manufacturer No
HSDNBSPPCB15A
Quantity
6
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
HSD 4+2 ST. T/H CODE B
Detailed Description
HSD®, Fakra, Quadraxial Connector Plug, Male Pin Through Hole Solder
Datasheet
Payment
Delivery
Mfr
Amphenol ICC (Commercial Products)
Series
-
Features
Code B
Includes
-
Impedance
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Tin
Cable Group
-
Body Material
Zinc Alloy
Housing Color
White
Mating Cycles
-
Mounting Type
Through Hole
Connector Type
Plug, Male Pin
Fastening Type
Latch Lock
Insertion Loss
-
Connector Style
HSD®, Fakra, Quadraxial
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
HSDNBSPP
Contact Termination
Solder
Dielectric Material
Thermoplastic
Operating Temperature
-
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Series | - |
| Features | Code B |
| Includes | - |
| Impedance | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Tin |
| Cable Group | - |
| Body Material | Zinc Alloy |
| Housing Color | White |
| Mating Cycles | - |
| Mounting Type | Through Hole |
| Connector Type | Plug, Male Pin |
| Fastening Type | Latch Lock |
| Insertion Loss | - |
| Connector Style | HSD®, Fakra, Quadraxial |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | HSDNBSPP |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Operating Temperature | - |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
