Step1: Product

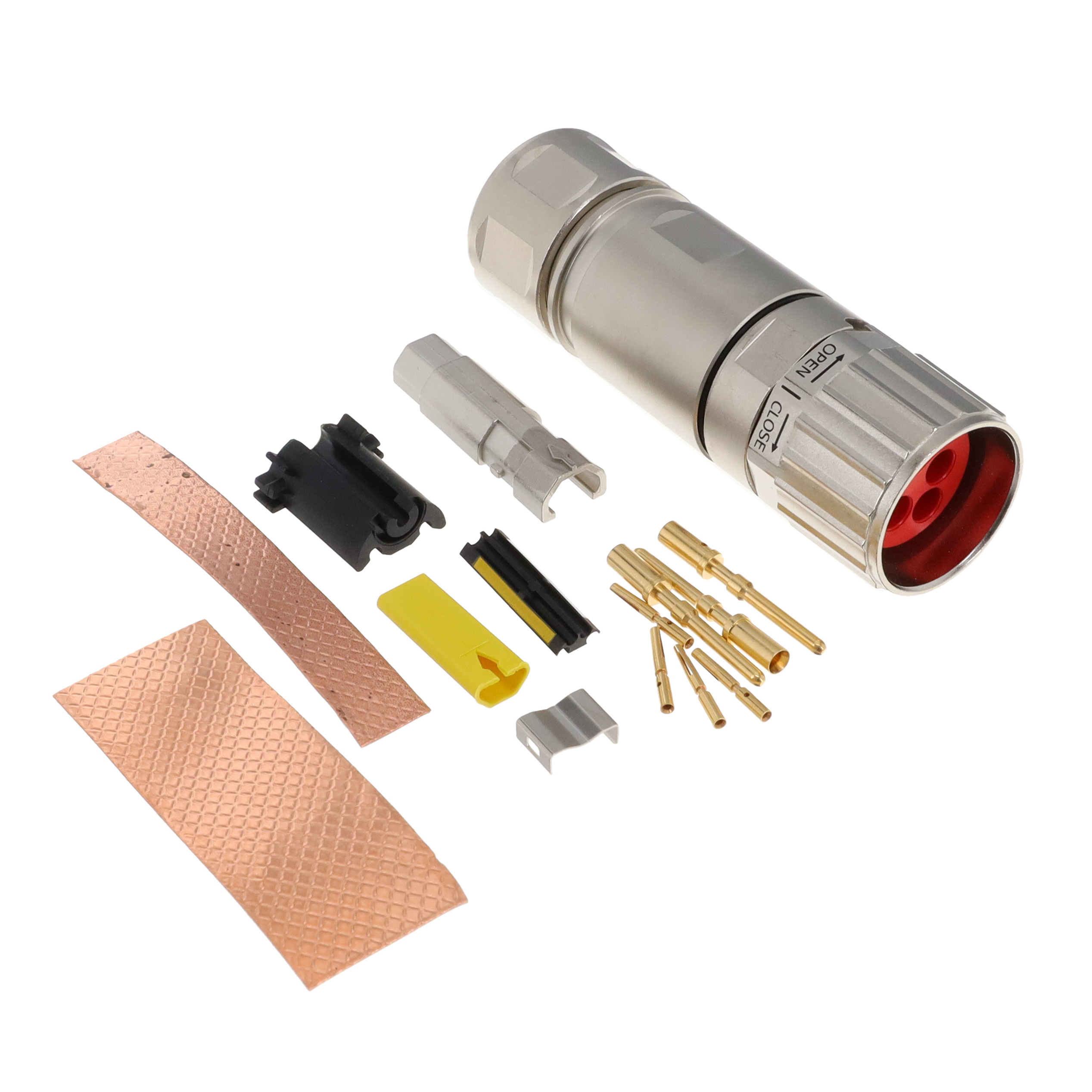

Amphenol CONEC 57-20001
Images are for reference only
Manufacturer
Manufacturer No
57-20001
Packaging
Bag
Description
HYBRID B17 FIELD ATTACHABLE CON
Detailed Description
7 (4 + 3 Power) Position Circular Connector Plug, Female Sockets and Male Pins Crimp
Datasheet
Payment
Delivery
Mfr
Amphenol CONEC
Color
Silver
Grade
-
Series
57
Features
Backshell, Coupling Nut
Packaging
Bag
Shielding
Shielded
Orientation
Keyed
Termination
Crimp
Applications
-
Shell Finish
Nickel
Cable Opening
0.413" ~ 0.453" (10.50mm ~ 11.50mm)
Mounting Type
Free Hanging (In-Line)
Qualification
-
Connector Type
Plug, Female Sockets and Male Pins
Fastening Type
Bayonet Lock
Shell Material
Copper Zinc
Voltage Rating
50VAC/DC, 300VAC/DC
Insert Material
Polyamide (PA), Nylon
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Number of Positions
7 (4 + 3 Power)
Shell Size - Insert
-
Current Rating (Amps)
4A, 20A
Operating Temperature
-20°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Copper Zinc, Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol CONEC |
| Color | Silver |
| Grade | - |
| Series | 57 |
| Features | Backshell, Coupling Nut |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Crimp |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.413" ~ 0.453" (10.50mm ~ 11.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | - |
| Connector Type | Plug, Female Sockets and Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Copper Zinc |
| Voltage Rating | 50VAC/DC, 300VAC/DC |
| Insert Material | Polyamide (PA), Nylon |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 7 (4 + 3 Power) |
| Shell Size - Insert | - |
| Current Rating (Amps) | 4A, 20A |
| Operating Temperature | -20°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Copper Zinc, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
