Step1: Product

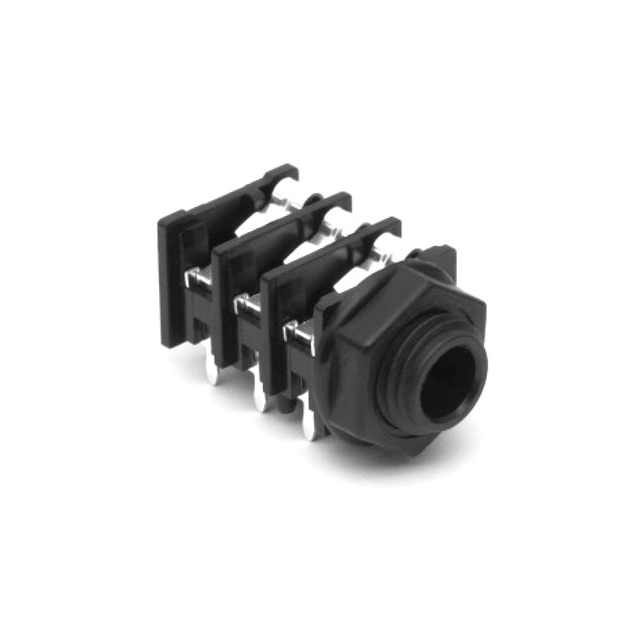

Amphenol Audio ACJM-PHOP-1
Images are for reference only
Manufacturer
Manufacturer No
ACJM-PHOP-1
Quantity
80
Availability
In Stock
Packaging
Bulk
Description
1/4"PHONE TRS STEREO HORZ PCB S
Detailed Description
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
Payment
Delivery
Mfr
Amphenol Audio
Gender
Female
Series
XLRSeries™ AC
Features
Mounting Hardware, Thread Lock
Includes
-
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Termination
Solder
Thread Size
-
Signal Lines
Stereo (3 Conductor, TRS)
Body Material
-
Cable Opening
-
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
-
Panel Hole Size
0.441" (11.20mm)
Voltage - Rated
34V
Contact Material
Brass
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Color
-
Internal Switch(s)
Single Switch
Base Product Number
ACJM
Mating Length/Depth
-
Current Rating (Amps)
10 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Tin
Number of Positions/Contacts
3 Conductors, 4 Contacts
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
| Attribute | Value |
|---|---|
| Mfr | Amphenol Audio |
| Gender | Female |
| Series | XLRSeries™ AC |
| Features | Mounting Hardware, Thread Lock |
| Includes | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Thread Size | - |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | - |
| Panel Hole Size | 0.441" (11.20mm) |
| Voltage - Rated | 34V |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Color | - |
| Internal Switch(s) | Single Switch |
| Base Product Number | ACJM |
| Mating Length/Depth | - |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
