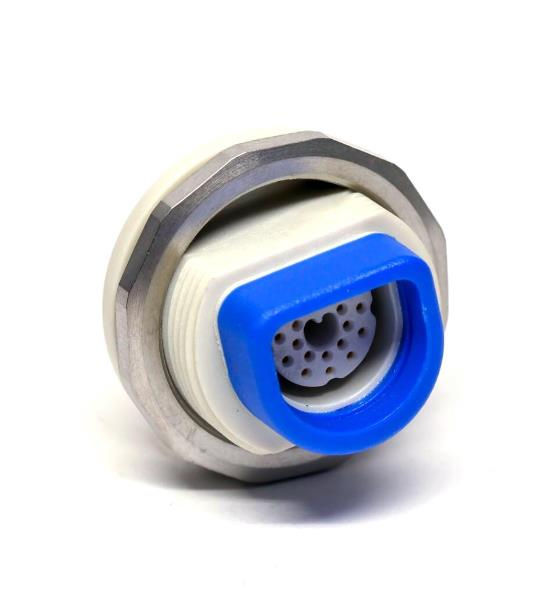

Amphenol Alden Products Company P1RNM14B1F
Images are for reference only
Manufacturer
Manufacturer No
P1RNM14B1F
Packaging
Bulk
Description
CONN RCPT FMALE 14P GOLD SLD CUP
Detailed Description
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Amphenol Alden Products Company
Color
Blue, White
Series
pulseOne
Features
-
Packaging
Bulk
Shielding
Unshielded
Orientation
1
Termination
Solder Cup
Applications
Medical
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull
Shell Material
Polyamide (PA), Nylon
Voltage Rating
300V
Insert Material
Polyamide (PA), Nylon
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Rear Side Nut
Primary Material
Plastic
Ingress Protection
IP64/IP67 - Dust Tight, Water Resistant, Waterproof
Base Product Number
P1RNM14
Number of Positions
14
Shell Size - Insert
-
Current Rating (Amps)
1A
Operating Temperature
-
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Amphenol Alden Products Company |
| Color | Blue, White |
| Series | pulseOne |
| Features | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | 1 |
| Termination | Solder Cup |
| Applications | Medical |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Polyamide (PA), Nylon |
| Voltage Rating | 300V |
| Insert Material | Polyamide (PA), Nylon |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Primary Material | Plastic |
| Ingress Protection | IP64/IP67 - Dust Tight, Water Resistant, Waterproof |
| Base Product Number | P1RNM14 |
| Number of Positions | 14 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | - |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
