Step1: Product

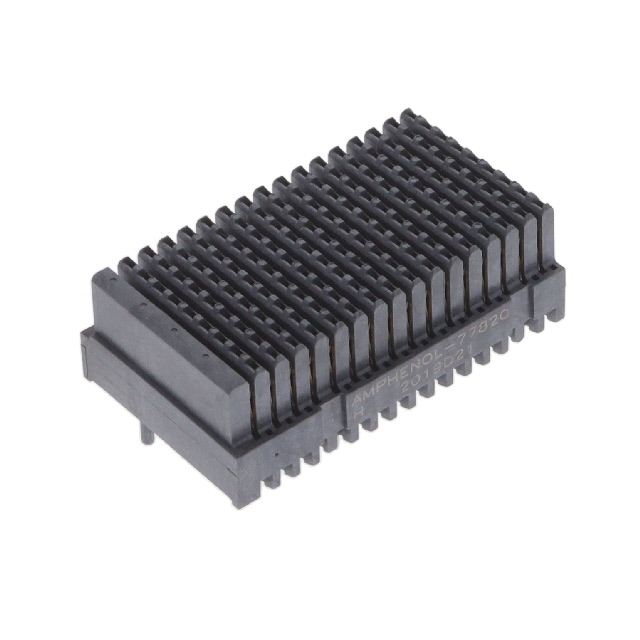

Amphenol Aerospace Operations RVPX-J16EM2
Images are for reference only
Manufacturer
Manufacturer No
RVPX-J16EM2
Availability
In Stock
Packaging
Tray
Description
BACKPLANE, 16 POSITION, RIGHT EN
Detailed Description
144 Connector Receptacle, Female Blade Sockets Through Hole VITA 46, Right End
Datasheet
Payment
Delivery
Color
-
Pitch
0.071" (1.80mm)
Series
R-VPX Evolution
Features
Board Guide
Packaging
Tray
Termination
Press-Fit
Manufacturer
Amphenol Aerospace Operations
Mounting Type
Through Hole
Connector Type
Receptacle, Female Blade Sockets
Contact Finish
Gold
Number of Rows
9
Voltage Rating
-
Connector Style
VITA 46, Right End
Connector Usage
Backplane
Number of Columns
16
Base Product Number
RVPX-J
Number of Positions
144
Current Rating (Amps)
1.5A
Operating Temperature
-
Contact Layout, Typical
-
Contact Finish Thickness
50.0µin (1.27µm)
Number of Positions Loaded
All
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Color | - |
| Pitch | 0.071" (1.80mm) |
| Series | R-VPX Evolution |
| Features | Board Guide |
| Packaging | Tray |
| Termination | Press-Fit |
| Manufacturer | Amphenol Aerospace Operations |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Number of Rows | 9 |
| Voltage Rating | - |
| Connector Style | VITA 46, Right End |
| Connector Usage | Backplane |
| Number of Columns | 16 |
| Base Product Number | RVPX-J |
| Number of Positions | 144 |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | - |
| Contact Layout, Typical | - |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
