Step1: Product
American Technical Ceramics 100A100GTN150X

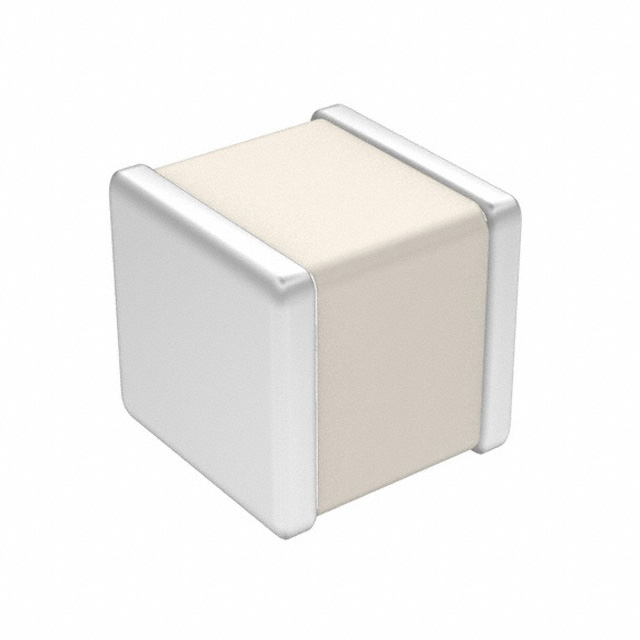

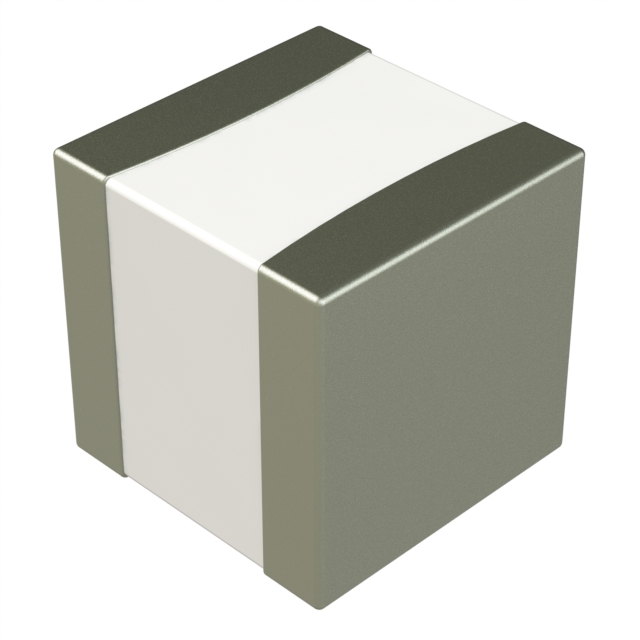

Images are for reference only
Manufacturer
Manufacturer No
100A100GTN150X
Quantity
77,772
Availability
In Stock
Package
0505 (1313 Metric)
Packaging
Tray
Description
CAP CER 10PF 150V P90 0505
Detailed Description
10 pF ±2% 150V Ceramic Capacitor P90 0505 (1313 Metric)
Datasheet
Payment
Delivery
Mfr
American Technical Ceramics
Series
Porcelain Superchip® ATC 100A
Ratings
-
Features
High Q, Low Loss, Low ESL
Packaging
Tray
Tolerance
±2%
Lead Style
-
Capacitance
10 pF
Applications
RF, Microwave, High Frequency, Bypass, Decoupling
Failure Rate
-
Lead Spacing
-
Mounting Type
Surface Mount, MLCC
Package / Case
0505 (1313 Metric)
Thickness (Max)
0.057" (1.45mm)
Voltage - Rated
150V
Size / Dimension
0.055" L x 0.055" W (1.40mm x 1.40mm)
Height - Seated (Max)
-
Operating Temperature
-55°C ~ 125°C
Temperature Coefficient
P90
| Attribute | Value |
|---|---|
| Mfr | American Technical Ceramics |
| Series | Porcelain Superchip® ATC 100A |
| Ratings | - |
| Features | High Q, Low Loss, Low ESL |
| Packaging | Tray |
| Tolerance | ±2% |
| Lead Style | - |
| Capacitance | 10 pF |
| Applications | RF, Microwave, High Frequency, Bypass, Decoupling |
| Failure Rate | - |
| Lead Spacing | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0505 (1313 Metric) |
| Thickness (Max) | 0.057" (1.45mm) |
| Voltage - Rated | 150V |
| Size / Dimension | 0.055" L x 0.055" W (1.40mm x 1.40mm) |
| Height - Seated (Max) | - |
| Operating Temperature | -55°C ~ 125°C |
| Temperature Coefficient | P90 |
