Step1: Product
American Electrical Inc. P-420-35004

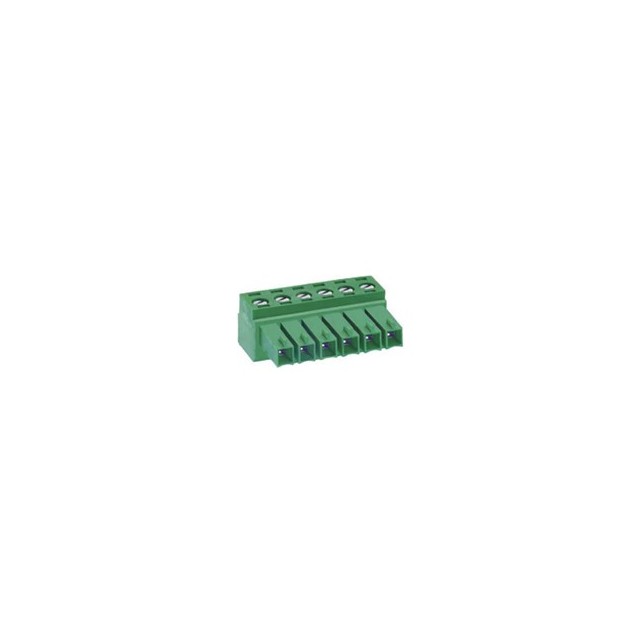

Images are for reference only
Manufacturer
Manufacturer No
P-420-35004
Packaging
Bulk
Description
TERM BLOCK PLUG 4POS 3.50MM
Detailed Description
4 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet
Payment
Delivery
Type
Plug, Female Sockets
Color
Green
Pitch
0.138" (3.50mm)
Series
-
Features
-
Packaging
Bulk
Screw Size
M2
Current - UL
10 A
Manufacturer
American Electrical Inc.
Voltage - UL
300 V
Current - IEC
-
Mounting Type
Free Hanging (In-Line)
Torque - Screw
0.28 Nm (2.5 Lb-In)
Plug Wire Entry
180°
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.441" (11.20mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
6.5mm
Header Orientation
-
Ingress Protection
-
Contact Tail Length
-
Number of Positions
4
Positions Per Level
4
Contact Mating Finish
Tin
Operating Temperature
-55°C ~ 105°C
Wire Gauge or Range - AWG
16-26 AWG
Wire Gauge or Range - mm²
0.14-1.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.138" (3.50mm) |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Screw Size | M2 |
| Current - UL | 10 A |
| Manufacturer | American Electrical Inc. |
| Voltage - UL | 300 V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.28 Nm (2.5 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.441" (11.20mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 6.5mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin |
| Operating Temperature | -55°C ~ 105°C |
| Wire Gauge or Range - AWG | 16-26 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
