Step1: Product

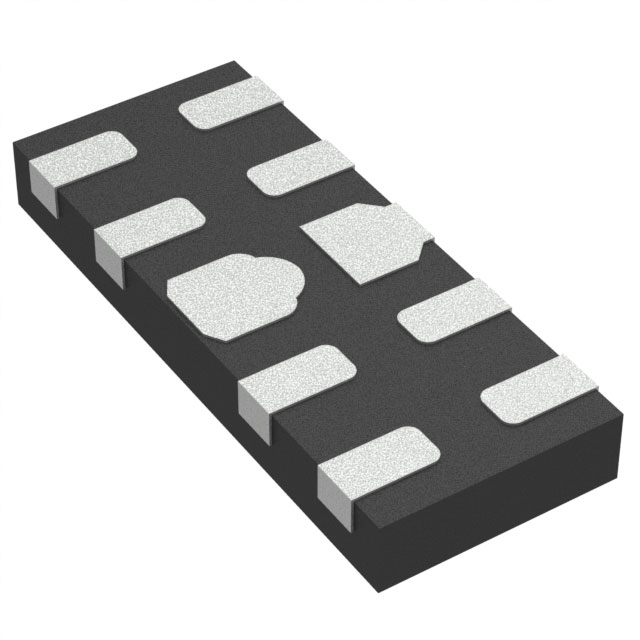

Alpha & Omega Semiconductor Inc. AOZ8809DI-05
Images are for reference only
Manufacturer
Manufacturer No
AOZ8809DI-05
Date Code
15+
Quantity
3,156
Availability
In Stock
Package
10-UFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5VWM 9VC 10DFN
Detailed Description
9V Clamp 12A (100ns) Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
Datasheet
Payment
Delivery
Mfr
Alpha & Omega Semiconductor Inc.
Type
Steering (Rail to Rail)
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
HDMI
Mounting Type
Surface Mount
Package / Case
10-UFDFN
Power - Peak Pulse
-
Base Product Number
AOZ8809
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
Yes
Capacitance @ Frequency
0.45pF @ 1MHz
Supplier Device Package
10-DFN (2.5x1)
Unidirectional Channels
4
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
9V
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
12A (100ns)
| Attribute | Value |
|---|---|
| Mfr | Alpha & Omega Semiconductor Inc. |
| Type | Steering (Rail to Rail) |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | HDMI |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Power - Peak Pulse | - |
| Base Product Number | AOZ8809 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | Yes |
| Capacitance @ Frequency | 0.45pF @ 1MHz |
| Supplier Device Package | 10-DFN (2.5x1) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 12A (100ns) |
