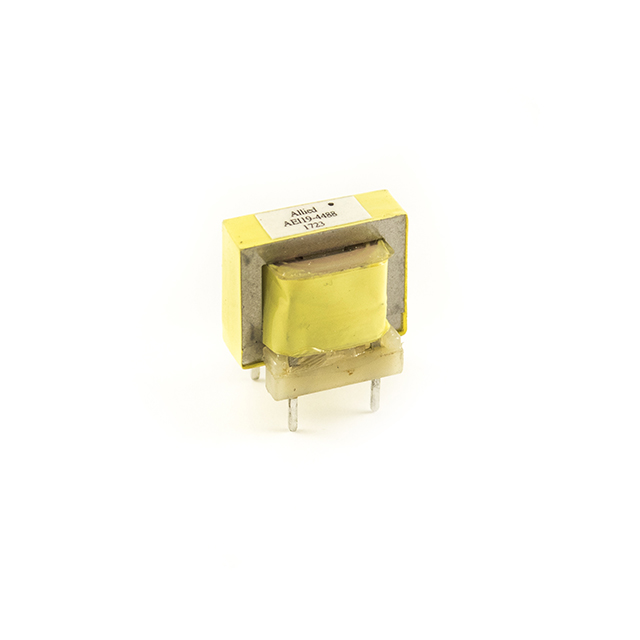

Allied Components International AEI19-4488
Images are for reference only
Manufacturer
Manufacturer No
AEI19-4488
Availability
In Stock
Packaging
Tray
Description
AUDIO XFMR 10KCT / 10K TH
Detailed Description
10kCT Impedance Primary Ohms 10k Impedance Secondary Ohms 1:1:2 Audio Transformer 300Hz ~ 3.5kHz Through Hole
Datasheet
Payment
Delivery
Series
-
Weight
-
Packaging
Tray
Power Level
-
Return Loss
24dB @ 300Hz ~ 3.5kHz Min
Manufacturer
Allied Components International
Mounting Type
Through Hole
Insertion Loss
1dB @ 1kHz Max
Approval Agency
-
Frequency Range
300Hz ~ 3.5kHz
Size / Dimension
0.800" L x 0.670" W (20.32mm x 17.02mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Frequency Response
±0.5dB
Voltage - Isolation
1200VAC
Height - Seated (Max)
0.750" (19.05mm)
Operating Temperature
0°C ~ 105°C
Impedance - Primary (Ohms)
10kCT
Impedance - Secondary (Ohms)
10k
DC Resistance (DCR) - Primary
190Ohm, 380Ohm
DC Resistance (DCR) - Secondary
430Ohm
Turns Ratio - Primary:Secondary
1:1:2
| Attribute | Value |
|---|---|
| Series | - |
| Weight | - |
| Packaging | Tray |
| Power Level | - |
| Return Loss | 24dB @ 300Hz ~ 3.5kHz Min |
| Manufacturer | Allied Components International |
| Mounting Type | Through Hole |
| Insertion Loss | 1dB @ 1kHz Max |
| Approval Agency | - |
| Frequency Range | 300Hz ~ 3.5kHz |
| Size / Dimension | 0.800" L x 0.670" W (20.32mm x 17.02mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Frequency Response | ±0.5dB |
| Voltage - Isolation | 1200VAC |
| Height - Seated (Max) | 0.750" (19.05mm) |
| Operating Temperature | 0°C ~ 105°C |
| Impedance - Primary (Ohms) | 10kCT |
| Impedance - Secondary (Ohms) | 10k |
| DC Resistance (DCR) - Primary | 190Ohm, 380Ohm |
| DC Resistance (DCR) - Secondary | 430Ohm |
| Turns Ratio - Primary:Secondary | 1:1:2 |
