Step1: Product

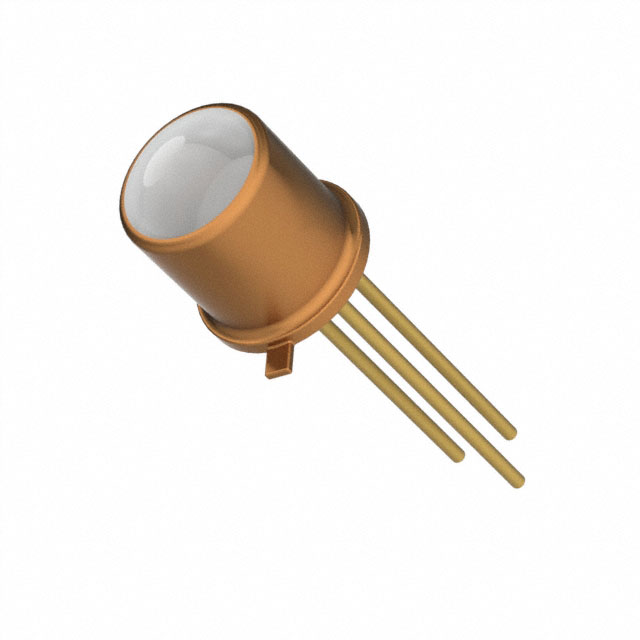

Advanced Photonix LS-0000-017
Images are for reference only
Manufacturer
Manufacturer No
LS-0000-017
Availability
In Stock
Package
TO-46-3 Lens Top Metal Can
Packaging
Tray
Description
LED ASSY RGB TO46 T/H
Detailed Description
Red, Green, Blue (RGB) LED Indication - Discrete 1.9V Red, 3.3V Green, 3.3V Blue TO-46-3 Lens Top Metal Can
Datasheet
Payment
Delivery
Mfr
Advanced Photonix
Color
Red, Green, Blue (RGB)
Series
-
Features
-
Lens Size
4.70mm Dia
Packaging
Tray
Lens Color
-
Lens Style
Round with Domed Top
Height (Max)
5.79mm
Configuration
Common Cathode
Mounting Type
Through Hole
Viewing Angle
-
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
TO-46-3 Lens Top Metal Can
Size / Dimension
5.33mm Dia
Lens Transparency
-
Wavelength - Peak
630nm Red, 525nm Green, 470nm Blue
Base Product Number
LS-0000
Millicandela Rating
140mcd Red, 850mcd Green, 280mcd Blue
Wavelength - Dominant
-
Supplier Device Package
TO-46
Voltage - Forward (Vf) (Typ)
1.9V Red, 3.3V Green, 3.3V Blue
| Attribute | Value |
|---|---|
| Mfr | Advanced Photonix |
| Color | Red, Green, Blue (RGB) |
| Series | - |
| Features | - |
| Lens Size | 4.70mm Dia |
| Packaging | Tray |
| Lens Color | - |
| Lens Style | Round with Domed Top |
| Height (Max) | 5.79mm |
| Configuration | Common Cathode |
| Mounting Type | Through Hole |
| Viewing Angle | - |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | TO-46-3 Lens Top Metal Can |
| Size / Dimension | 5.33mm Dia |
| Lens Transparency | - |
| Wavelength - Peak | 630nm Red, 525nm Green, 470nm Blue |
| Base Product Number | LS-0000 |
| Millicandela Rating | 140mcd Red, 850mcd Green, 280mcd Blue |
| Wavelength - Dominant | - |
| Supplier Device Package | TO-46 |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.3V Blue |
