Step1: Product

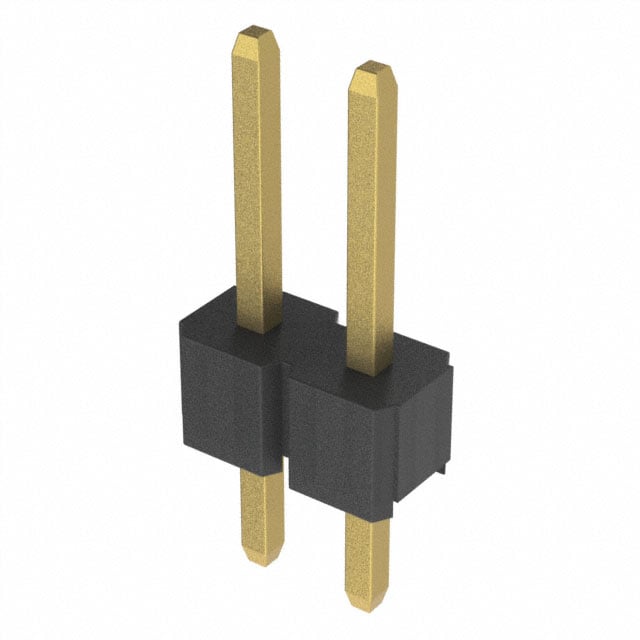

Adam Tech PH1-02-UA
Mfr
Adam Tech
Style
Board to Board
Series
PH1
Features
-
Packaging
Bag
Shrouding
Unshrouded
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.098" (2.50mm)
Ingress Protection
-
Base Product Number
PH1
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
2
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
0.454" (11.54mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.236" (6.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Adam Tech |
| Style | Board to Board |
| Series | PH1 |
| Features | - |
| Packaging | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Ingress Protection | - |
| Base Product Number | PH1 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 2 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.454" (11.54mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
