Step1: Product

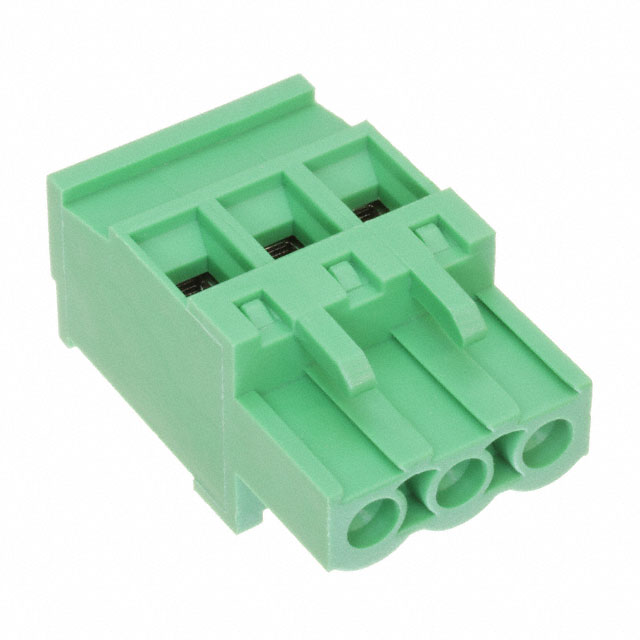

Adam Tech EB9A-03-C
Type
Plug, Female Sockets
Color
Green
Pitch
0.197" (5.00mm)
Series
EB
Features
Retention Latches (Wire Side)
Packaging
Box
Screw Size
M3
Current - UL
15 A
Manufacturer
Adam Tech
Voltage - UL
300 V
Current - IEC
-
Mounting Type
Free Hanging (In-Line)
Torque - Screw
0.5 Nm (4.4 Lb-In)
Plug Wire Entry
90°
Contact Material
Brass
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
1.024" (26.01mm)
Termination Style
Screw - Leaf Spring, Wire Guard
Wire Strip Length
7-8mm
Header Orientation
-
Ingress Protection
-
Base Product Number
EB9A
Contact Tail Length
-
Number of Positions
3
Positions Per Level
3
Contact Mating Finish
Nickel
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
14-28 AWG
Wire Gauge or Range - mm²
2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | EB |
| Features | Retention Latches (Wire Side) |
| Packaging | Box |
| Screw Size | M3 |
| Current - UL | 15 A |
| Manufacturer | Adam Tech |
| Voltage - UL | 300 V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Plug Wire Entry | 90° |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 1.024" (26.01mm) |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Wire Strip Length | 7-8mm |
| Header Orientation | - |
| Ingress Protection | - |
| Base Product Number | EB9A |
| Contact Tail Length | - |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Contact Mating Finish | Nickel |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 14-28 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Material Flammability Rating | UL94 V-0 |
