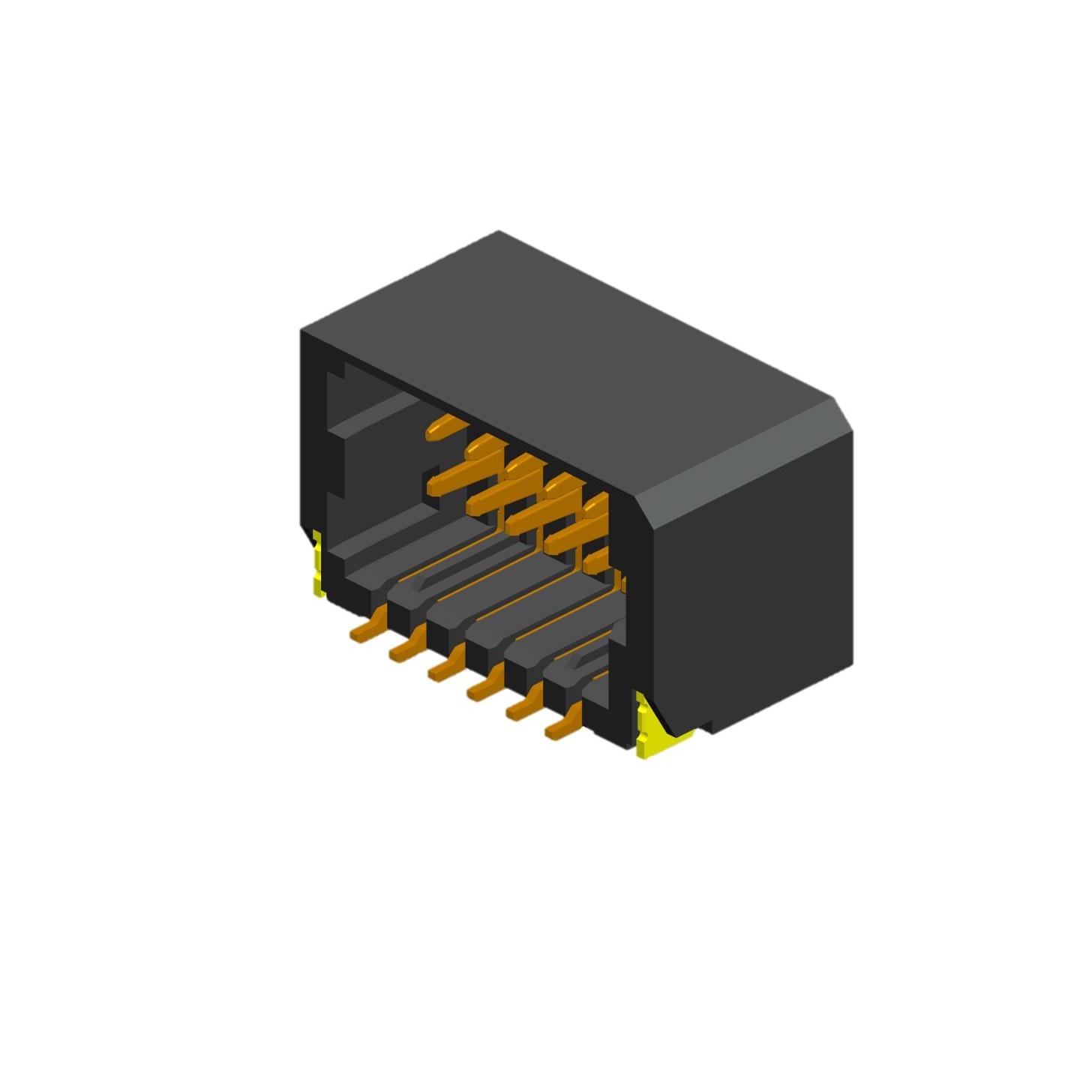

Aces Connectors 50246-04001-001
Images are for reference only
Manufacturer
Manufacturer No
50246-04001-001
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
40P, 1.0MM WTB WAFER SMT R/A D/R
Detailed Description
Connector Header Surface Mount, Right Angle 40 position 0.039" (1.00mm)
Datasheet
Payment
Delivery
Mfr
Aces Connectors
Style
Board to Cable/Wire
Series
50246
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
50VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.213" (5.40mm)
Ingress Protection
-
Insulation Material
Thermoplastic
Number of Positions
40
Row Spacing - Mating
-
Contact Finish - Post
Gold
Contact Length - Post
-
Current Rating (Amps)
1A per Contact
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Aces Connectors |
| Style | Board to Cable/Wire |
| Series | 50246 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 50VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.213" (5.40mm) |
| Ingress Protection | - |
| Insulation Material | Thermoplastic |
| Number of Positions | 40 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
