Step1: Product

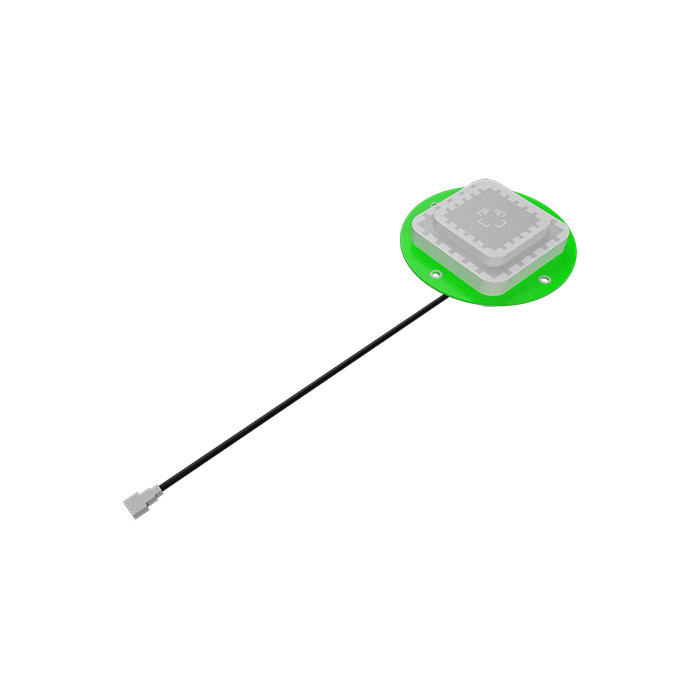

Abracon LLC AANI-AP-0035
Images are for reference only
Manufacturer
Manufacturer No
AANI-AP-0035
Packaging
Bulk
Description
RF ANT ACTIVE PATCH GNSS L1/L2
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch MMCX Male Through Hole
Datasheet
Payment
Delivery
Gain
5dBic, 4.8dBic
VSWR
2
Grade
-
Series
AANI-AP
Features
Cable - 120mm, LNA
Packaging
Bulk
Return Loss
-
Termination
MMCX Male
Antenna Type
Ceramic Patch
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.657" (16.70mm)
Manufacturer
Abracon LLC
Mounting Type
Through Hole
Qualification
-
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz
Number of Bands
2
Ingress Protection
-
RF Family/Standard
Navigation
Base Product Number
AANI-AP
Frequency (Center/Band)
1.227GHz, 1.575GHz
| Attribute | Value |
|---|---|
| Gain | 5dBic, 4.8dBic |
| VSWR | 2 |
| Grade | - |
| Series | AANI-AP |
| Features | Cable - 120mm, LNA |
| Packaging | Bulk |
| Return Loss | - |
| Termination | MMCX Male |
| Antenna Type | Ceramic Patch |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.657" (16.70mm) |
| Manufacturer | Abracon LLC |
| Mounting Type | Through Hole |
| Qualification | - |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz |
| Number of Bands | 2 |
| Ingress Protection | - |
| RF Family/Standard | Navigation |
| Base Product Number | AANI-AP |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz |
