Step1: Product
ABC Taiwan Electronics Corp. CM4532151KSB

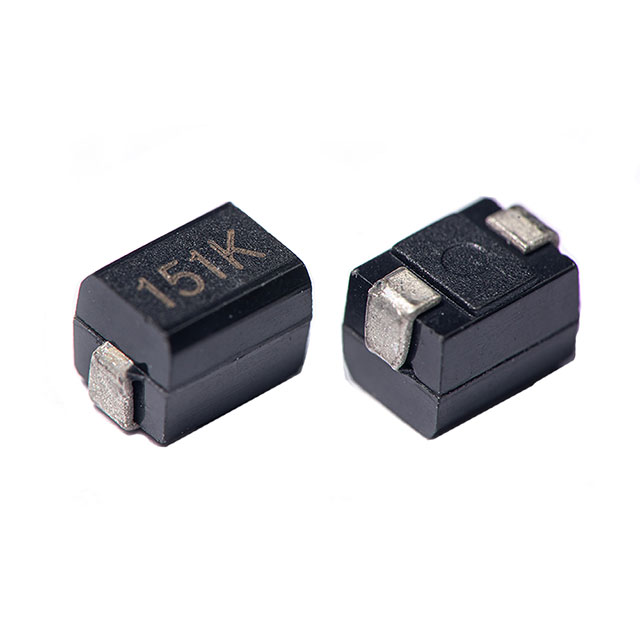

Images are for reference only
Manufacturer
Manufacturer No
CM4532151KSB
Package
1812 (4532 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 150UH 105MA 9 OHM SMD
Detailed Description
150 µH Unshielded Wirewound Inductor 105 mA 9Ohm Max 1812 (4532 Metric)
Payment
Delivery
Mfr
ABC Taiwan Electronics Corp.
Type
Wirewound
Series
CM4532-S
Ratings
-
Features
-
Q @ Freq
40 @ 796kHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±10%
Inductance
150 µH
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric)
Material - Core
Ferrite
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
DC Resistance (DCR)
9Ohm Max
Current Rating (Amps)
105 mA
Height - Seated (Max)
0.134" (3.40mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1812
Frequency - Self Resonant
6MHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
796 kHz
| Attribute | Value |
|---|---|
| Mfr | ABC Taiwan Electronics Corp. |
| Type | Wirewound |
| Series | CM4532-S |
| Ratings | - |
| Features | - |
| Q @ Freq | 40 @ 796kHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 150 µH |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Material - Core | Ferrite |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| DC Resistance (DCR) | 9Ohm Max |
| Current Rating (Amps) | 105 mA |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1812 |
| Frequency - Self Resonant | 6MHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 796 kHz |
