Step1: Product

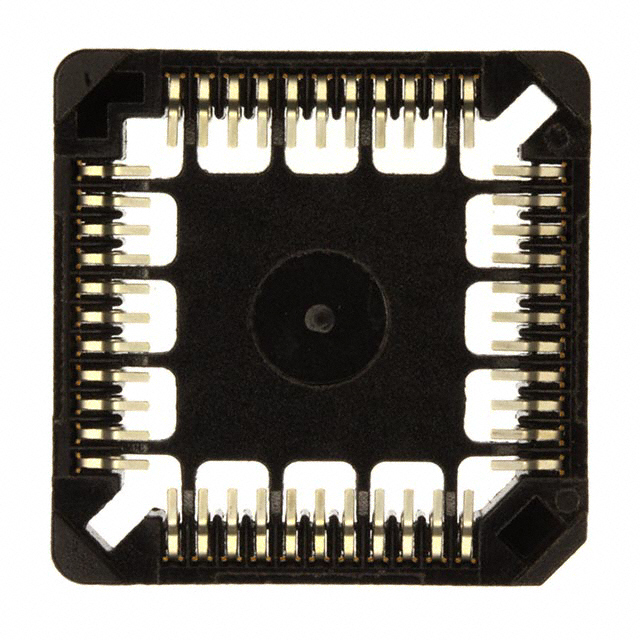

3M 8444-21B1-RK-TR
Images are for reference only
Manufacturer
Manufacturer No
8444-21B1-RK-TR
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN SOCKET PLCC 44POS TIN
Detailed Description
44 (4 x 11) Pos PLCC Socket Tin Surface Mount
Datasheet
Payment
Delivery
Type
PLCC
Series
8400
Features
Closed Frame
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
3M
Pitch - Post
0.050" (1.27mm)
Mounting Type
Surface Mount
Pitch - Mating
0.050" (1.27mm)
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Contact Resistance
15mOhm
Base Product Number
8444
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Material - Post
Copper Alloy
Termination Post Length
0.132" (3.35mm)
Contact Material - Mating
Copper Alloy
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
160.0µin (4.06µm)
Contact Finish Thickness - Mating
160.0µin (4.06µm)
Number of Positions or Pins (Grid)
44 (4 x 11)
| Attribute | Value |
|---|---|
| Type | PLCC |
| Series | 8400 |
| Features | Closed Frame |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Resistance | 15mOhm |
| Base Product Number | 8444 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Copper Alloy |
| Termination Post Length | 0.132" (3.35mm) |
| Contact Material - Mating | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Number of Positions or Pins (Grid) | 44 (4 x 11) |
