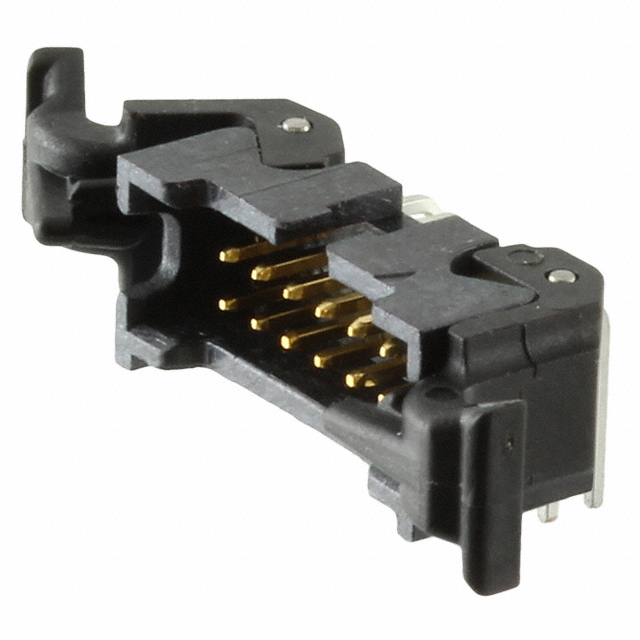

3M 45212-520230
Images are for reference only
Manufacturer
Manufacturer No
45212-520230
Availability
In Stock
Packaging
Tray
Description
CONN HEADER R/A 12POS 1.27MM
Detailed Description
Connector Header Through Hole, Right Angle 12 position 0.050" (1.27mm)
Datasheet
Payment
Delivery
Mfr
3M
Style
Board to Cable/Wire
Series
452
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks, Short
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
125V
Contact Material
Copper Alloy
Insulation Color
-
Insulation Height
0.210" (5.33mm)
Ingress Protection
-
Base Product Number
45212
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
12
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Contact Length - Post
0.094" (2.40mm)
Current Rating (Amps)
1A
Operating Temperature
-65°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | 3M |
| Style | Board to Cable/Wire |
| Series | 452 |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 125V |
| Contact Material | Copper Alloy |
| Insulation Color | - |
| Insulation Height | 0.210" (5.33mm) |
| Ingress Protection | - |
| Base Product Number | 45212 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.094" (2.40mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -65°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
