Step1: Product

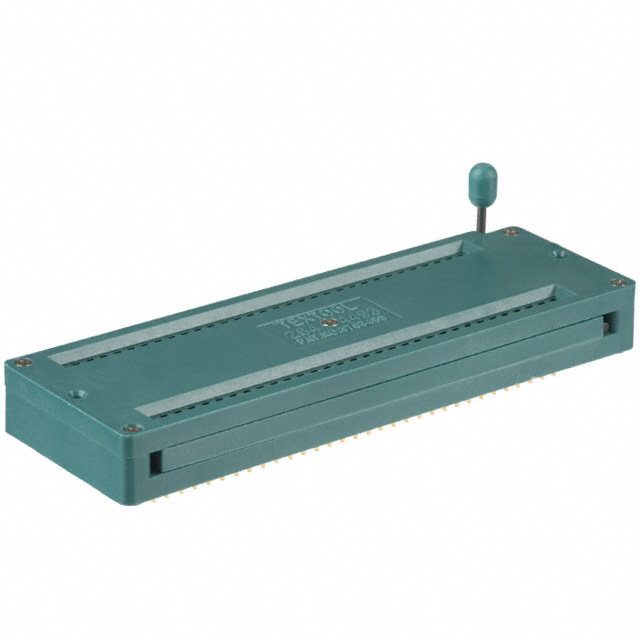

3M 264-4493-00-0602J
Images are for reference only
Manufacturer
Manufacturer No
264-4493-00-0602J
Availability
In Stock
Packaging
Tube
Description
CONN IC DIP SOCKET ZIF 64POS GLD
Detailed Description
64 (2 x 32) Pos DIP, ZIF (ZIP), 0.9" (22.86mm) Row Spacing Socket Gold Connector
Datasheet
Payment
Delivery
Type
DIP, ZIF (ZIP), 0.9" (22.86mm) Row Spacing
Series
Textool™
Features
Closed Frame
Packaging
Tube
Termination
Press-Fit
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Connector
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polysulfone (PSU), Glass Filled
Contact Resistance
-
Base Product Number
264
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.110" (2.78mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Number of Positions or Pins (Grid)
64 (2 x 32)
| Attribute | Value |
|---|---|
| Type | DIP, ZIF (ZIP), 0.9" (22.86mm) Row Spacing |
| Series | Textool™ |
| Features | Closed Frame |
| Packaging | Tube |
| Termination | Press-Fit |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Connector |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Contact Resistance | - |
| Base Product Number | 264 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.110" (2.78mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Number of Positions or Pins (Grid) | 64 (2 x 32) |
