Step1: Product

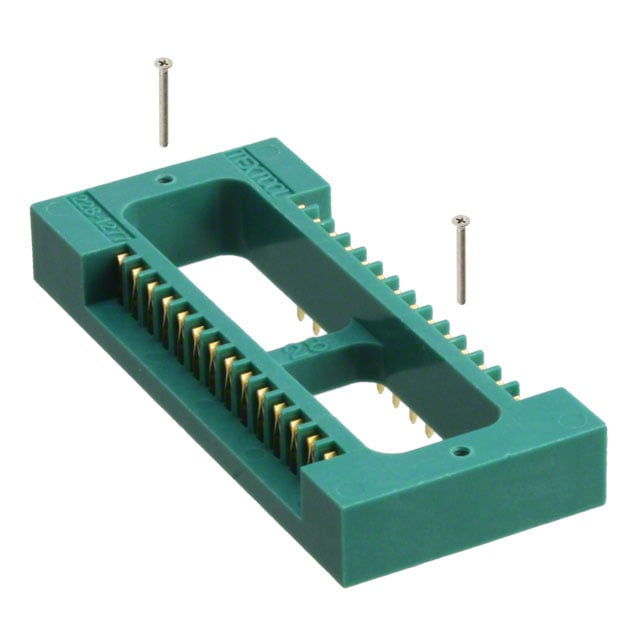

3M 228-1277-29-0602J
Images are for reference only
Manufacturer
Manufacturer No
228-1277-29-0602J
Packaging
Box
Description
RECEPTACLE DIP SOCKET 28POS .6"
Detailed Description
IC Socket Adapter DIP, 0.6" (15.24mm) Row Spacing To DIP, 0.6" (15.24mm) Row Spacing Through Hole
Datasheet
Payment
Delivery
Series
Textool™
Features
-
Packaging
Box
Termination
Solder
Manufacturer
3M
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Board Material
-
Number of Pins
28
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polysulfone (PSU), Glass Filled
Base Product Number
228
Contact Finish - Post
Gold
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Beryllium Copper
Termination Post Length
0.130" (3.30mm)
Convert To (Adapter End)
DIP, 0.6" (15.24mm) Row Spacing
Contact Material - Mating
Beryllium Copper
Convert From (Adapter End)
DIP, 0.6" (15.24mm) Row Spacing
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | Textool™ |
| Features | - |
| Packaging | Box |
| Termination | Solder |
| Manufacturer | 3M |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Board Material | - |
| Number of Pins | 28 |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Base Product Number | 228 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Termination Post Length | 0.130" (3.30mm) |
| Convert To (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing |
| Contact Material - Mating | Beryllium Copper |
| Convert From (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
